SDO HMI 2014-10-31 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.77 | 84.10 | 21.95 | 80.92 | -4.91 | 83.57 | -58.31 | 98.44 | 0.8586 | 445.8 | 297.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-31 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

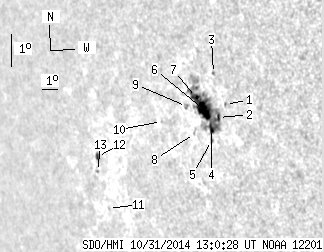

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 1.11 | -4.44 | 85.23 | -56.65 | 98.17 | 0.8435 | 116.0 | 151.6 | |
| 1.73 | 71.01 | 1.61 | 67.23 | -4.86 | 84.79 | -57.09 | 98.59 | 0.8481 | -252.9 | 351.9 | |
| 0.00 | 1.39 | 0.00 | 1.29 | -3.54 | 84.67 | -57.21 | 97.03 | 0.8475 | 372.0 | 363.3 | |
| 3.29 | -2.00 | 3.10 | -2.00 | -5.22 | 84.35 | -57.53 | 98.93 | 0.8526 | 700.1 | 999999 | |
| 0.00 | 1.65 | 0.00 | 1.55 | -5.58 | 84.29 | -57.58 | 99.35 | 0.8536 | 390.0 | 328.4 | |
| 14.55 | -2.00 | 13.80 | -2.00 | -4.70 | 84.03 | -57.85 | 98.27 | 0.8547 | 729.9 | 999999 | |
| 1.73 | -2.00 | 1.66 | -2.00 | -4.33 | 83.62 | -58.25 | 97.78 | 0.8579 | 565.5 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.92 | -5.43 | 83.35 | -58.53 | 99.01 | 0.8617 | 290.0 | 276.4 | |
| 0.00 | 2.34 | 0.00 | 2.28 | -4.64 | 83.00 | -58.87 | 98.04 | 0.8637 | 234.0 | 126.6 | |
| 0.00 | 0.87 | 0.00 | 0.89 | -5.20 | 81.43 | -60.45 | 98.43 | 0.8778 | 282.0 | 230.3 | |
| 0.00 | 0.61 | 0.00 | 0.73 | -8.12 | 77.28 | -64.60 | 100.99 | 0.9127 | -336.0 | -291.3 | |
| 1.47 | 3.12 | 1.78 | 3.76 | -6.57 | 76.93 | -64.95 | 99.25 | 0.9136 | -302.2 | -210.8 | |
| 0.00 | 0.95 | 0.00 | 1.16 | -7.03 | 76.81 | -65.07 | 99.74 | 0.9149 | -231.0 | -256.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
