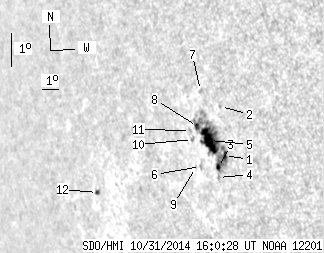

SDO HMI 2014-10-31 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.21 | 89.95 | 24.05 | 81.97 | -4.67 | 83.78 | -56.45 | 98.48 | 0.8417 | 502.9 | 371.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-31 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.16 | 77.22 | 1.93 | 69.80 | -4.97 | 84.77 | -55.45 | 99.00 | 0.8330 | -231.1 | 420.5 | |
| 0.00 | 0.95 | 0.00 | 0.84 | -3.49 | 84.73 | -55.50 | 97.24 | 0.8314 | 231.0 | 383.9 | |
| 1.64 | -1.00 | 1.48 | -1.00 | -5.35 | 84.40 | -55.83 | 99.39 | 0.8371 | 669.7 | 999999 | |
| 0.00 | 1.47 | 0.00 | 1.33 | -5.66 | 84.36 | -55.87 | 99.74 | 0.8379 | 466.0 | 378.6 | |
| 19.04 | -1.00 | 17.27 | -1.00 | -4.56 | 84.02 | -56.21 | 98.39 | 0.8395 | 754.8 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.92 | -5.38 | 83.42 | -56.81 | 99.25 | 0.8462 | 506.0 | 328.3 | |
| 0.00 | 1.56 | 0.00 | 1.42 | -3.08 | 83.69 | -56.54 | 96.59 | 0.8407 | 563.0 | 433.8 | |
| 2.16 | -1.00 | 1.99 | -1.00 | -4.18 | 83.41 | -56.81 | 97.84 | 0.8447 | 363.6 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.81 | -5.43 | 83.14 | -57.09 | 99.26 | 0.8489 | 137.0 | 90.2 | |
| 0.00 | 1.99 | 0.00 | 1.85 | -4.59 | 83.09 | -57.14 | 98.27 | 0.8482 | 339.0 | 238.3 | |
| 0.00 | 1.56 | 0.00 | 1.45 | -4.33 | 83.01 | -57.22 | 97.94 | 0.8486 | -374.0 | -338.3 | |
| 1.21 | 2.25 | 1.38 | 2.55 | -6.60 | 76.96 | -63.26 | 99.55 | 0.9015 | -402.7 | -317.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
