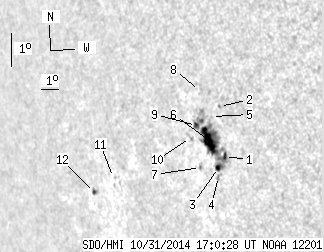

SDO HMI 2014-10-31 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.57 | 86.92 | 23.99 | 78.16 | -4.68 | 83.66 | -56.01 | 98.56 | 0.8376 | 515.3 | 388.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-31 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.25 | 60.68 | 1.97 | 53.88 | -4.99 | 84.80 | -54.87 | 99.13 | 0.8274 | -239.9 | 450.3 | |
| 0.00 | 1.04 | 0.00 | 0.91 | -3.49 | 84.70 | -54.97 | 97.32 | 0.8263 | 359.0 | 365.6 | |
| 2.51 | -1.00 | 2.23 | -1.00 | -5.34 | 84.44 | -55.24 | 99.49 | 0.8315 | 756.0 | 999999 | |
| 0.00 | 2.77 | 0.00 | 2.46 | -5.62 | 84.40 | -55.28 | 99.81 | 0.8323 | 458.0 | 426.0 | |
| 0.00 | 0.87 | 0.00 | 0.77 | -3.82 | 84.25 | -55.42 | 97.64 | 0.8311 | 338.0 | 320.4 | |
| 18.52 | -1.00 | 16.55 | -1.00 | -4.56 | 84.01 | -55.67 | 98.48 | 0.8344 | 772.2 | 999999 | |
| 0.00 | 1.30 | 0.00 | 1.18 | -5.40 | 83.47 | -56.21 | 99.38 | 0.8407 | 349.0 | 257.5 | |
| 0.00 | 1.13 | 0.00 | 1.01 | -3.08 | 83.68 | -56.00 | 96.66 | 0.8356 | 467.0 | 449.3 | |
| 1.99 | 13.16 | 1.80 | 11.86 | -4.14 | 83.41 | -56.26 | 97.89 | 0.8395 | 377.1 | 405.9 | |
| 0.00 | 2.68 | 0.00 | 2.46 | -4.53 | 83.04 | -56.63 | 98.28 | 0.8435 | 191.0 | 95.5 | |
| 0.00 | 0.52 | 0.00 | 0.55 | -6.05 | 78.29 | -61.38 | 99.23 | 0.8863 | -278.0 | -333.3 | |
| 1.30 | 2.77 | 1.44 | 3.08 | -6.60 | 76.95 | -62.72 | 99.63 | 0.8974 | -407.7 | -225.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
