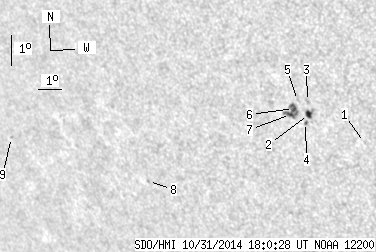

SDO HMI 2014-10-31 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.62 | 25.11 | 5.09 | 17.02 | -16.27 | 100.98 | -38.14 | 119.74 | 0.6839 | 390.2 | 427.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-31 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.45 | -16.93 | 104.12 | -35.01 | 122.60 | 0.6538 | -623.0 | -531.9 | |
| 2.94 | 5.89 | 1.96 | 3.92 | -16.14 | 102.14 | -36.99 | 120.20 | 0.6711 | 896.9 | 729.5 | |
| 0.00 | 1.56 | 0.00 | 1.03 | -15.72 | 102.19 | -36.94 | 119.68 | 0.6681 | 719.0 | 642.5 | |
| 0.35 | 1.47 | 0.23 | 0.98 | -16.40 | 101.96 | -37.16 | 120.44 | 0.6745 | 621.0 | 502.6 | |
| 0.00 | 1.04 | 0.00 | 0.69 | -15.71 | 101.80 | -37.32 | 119.42 | 0.6724 | 694.0 | 588.3 | |
| 2.60 | 12.55 | 1.74 | 8.43 | -15.97 | 101.59 | -37.54 | 119.64 | 0.6763 | 805.6 | 570.9 | |
| 1.73 | -6.00 | 1.16 | -6.00 | -16.17 | 101.43 | -37.70 | 119.80 | 0.6792 | 601.2 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.86 | -18.65 | 94.85 | -44.27 | 119.31 | 0.7608 | -590.0 | -496.5 | |
| 0.00 | 0.78 | 0.00 | 0.66 | -17.59 | 88.88 | -50.24 | 115.43 | 0.8137 | -494.0 | -406.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
