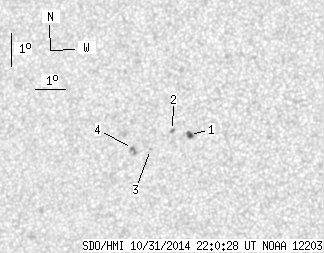

SDO HMI 2014-10-31 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.86 | 11.08 | 1.56 | 6.07 | 12.63 | 112.68 | -24.23 | 69.52 | 0.4293 | -43.4 | 102.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-31 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.34 | 4.50 | 1.27 | 2.45 | 12.82 | 113.54 | -23.37 | 68.52 | 0.4175 | -1020.6 | -710.4 | |
| 0.00 | 1.73 | 0.00 | 0.95 | 12.93 | 112.96 | -23.95 | 68.69 | 0.4265 | -852.0 | -622.5 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 12.33 | 112.28 | -24.63 | 70.46 | 0.4338 | 661.0 | 523.3 | |
| 0.52 | 3.90 | 0.29 | 2.15 | 12.35 | 111.68 | -25.24 | 70.80 | 0.4429 | 999.3 | 868.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
