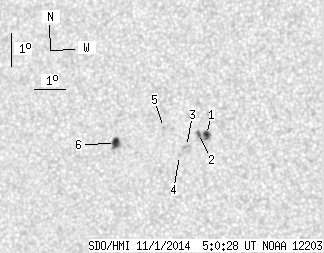

SDO HMI 2014-11-01 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.22 | 21.31 | 5.45 | 11.33 | 12.60 | 113.14 | -19.93 | 65.99 | 0.3655 | -222.6 | -367.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-01 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.55 | 8.14 | 1.87 | 4.30 | 12.82 | 114.42 | -18.64 | 64.20 | 0.3477 | -1046.7 | -708.7 | |
| 1.30 | -1.00 | 0.69 | -1.00 | 12.84 | 114.16 | -18.90 | 64.42 | 0.3517 | -946.0 | 999999 | |
| 0.00 | 3.29 | 0.00 | 1.74 | 12.44 | 113.81 | -19.26 | 65.84 | 0.3545 | -680.0 | -602.4 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 12.16 | 113.60 | -19.46 | 66.77 | 0.3560 | -836.0 | -601.9 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 12.99 | 113.02 | -20.05 | 65.20 | 0.3695 | -768.0 | -556.0 | |
| 5.37 | 7.54 | 2.89 | 4.05 | 12.47 | 111.50 | -21.57 | 67.86 | 0.3892 | 1042.6 | 724.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
