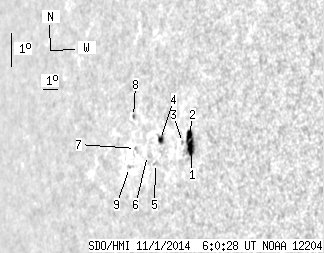

SDO HMI 2014-11-01 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.30 | 28.07 | 13.17 | 30.67 | 6.55 | 69.19 | -63.33 | 84.87 | 0.8929 | -235.6 | -64.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-01 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.15 | 16.98 | 6.48 | 17.92 | 6.51 | 70.27 | -62.25 | 84.95 | 0.8846 | -653.0 | -394.8 | |
| 3.72 | -1.00 | 3.95 | -1.00 | 6.86 | 70.13 | -62.39 | 84.55 | 0.8857 | -408.8 | 999999 | |
| 0.00 | 1.30 | 0.00 | 1.40 | 6.62 | 69.72 | -62.80 | 84.80 | 0.8890 | -48.0 | -40.9 | |
| 2.43 | 4.76 | 2.74 | 5.37 | 6.61 | 68.23 | -64.29 | 84.77 | 0.9006 | -275.0 | -156.0 | |
| 0.00 | 1.30 | 0.00 | 1.48 | 5.88 | 68.04 | -64.47 | 85.58 | 0.9022 | 568.0 | 451.1 | |
| 0.00 | 0.61 | 0.00 | 0.71 | 6.07 | 67.43 | -65.09 | 85.33 | 0.9066 | 260.0 | 247.7 | |
| 0.00 | 0.95 | 0.00 | 1.15 | 6.22 | 66.52 | -66.00 | 85.14 | 0.9132 | 627.0 | 570.1 | |
| 0.00 | 1.04 | 0.00 | 1.27 | 7.15 | 66.12 | -66.39 | 84.10 | 0.9158 | 320.0 | 288.5 | |
| 0.00 | 1.13 | 0.00 | 1.37 | 5.63 | 66.21 | -66.31 | 85.77 | 0.9155 | 357.0 | 322.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
