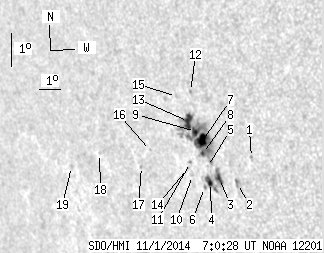

SDO HMI 2014-11-01 07:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.39 | 121.01 | 22.67 | 90.49 | -4.47 | 84.20 | -47.77 | 99.89 | 0.7515 | 486.7 | 319.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-01 07:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.68 | -4.71 | 86.57 | -45.40 | 100.79 | 0.7247 | 551.0 | 452.5 | |
| 0.00 | 3.55 | 0.00 | 2.58 | -5.54 | 85.89 | -46.08 | 101.72 | 0.7345 | -791.0 | -606.0 | |
| 3.72 | 22.00 | 2.75 | 16.29 | -5.43 | 85.12 | -46.85 | 101.37 | 0.7432 | -562.1 | 176.9 | |
| 2.51 | -3.00 | 1.87 | -3.00 | -5.57 | 84.71 | -47.26 | 101.46 | 0.7482 | 580.5 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.45 | -5.09 | 84.63 | -47.35 | 100.81 | 0.7481 | 419.0 | 369.4 | |
| 0.00 | 1.47 | 0.00 | 1.10 | -5.74 | 84.42 | -47.55 | 101.61 | 0.7518 | 302.0 | 286.3 | |
| 9.09 | 82.63 | 6.76 | 61.69 | -4.32 | 84.48 | -47.50 | 99.75 | 0.7482 | 1058.8 | 437.4 | |
| 1.21 | -7.00 | 0.90 | -7.00 | -4.71 | 84.44 | -47.53 | 100.26 | 0.7494 | 828.4 | 999999 | |
| 5.46 | -7.00 | 4.08 | -7.00 | -4.06 | 84.18 | -47.79 | 99.35 | 0.7511 | 762.7 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.65 | -5.40 | 83.92 | -48.05 | 101.05 | 0.7567 | 305.0 | 248.8 | |
| 0.00 | 1.13 | 0.00 | 0.85 | -5.01 | 83.87 | -48.10 | 100.53 | 0.7564 | 521.0 | 391.2 | |
| 0.00 | 1.13 | 0.00 | 0.84 | -2.87 | 84.04 | -47.93 | 97.75 | 0.7505 | 602.0 | 494.6 | |
| 8.40 | -7.00 | 6.31 | -7.00 | -3.78 | 83.89 | -48.08 | 98.91 | 0.7538 | 643.1 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.46 | -5.20 | 83.72 | -48.25 | 100.74 | 0.7586 | 378.0 | 290.0 | |
| 0.00 | 1.13 | 0.00 | 0.85 | -3.06 | 83.40 | -48.57 | 97.87 | 0.7581 | 290.0 | 279.7 | |
| 0.00 | 0.95 | 0.00 | 0.74 | -4.76 | 82.07 | -49.90 | 99.79 | 0.7759 | -421.0 | -381.5 | |
| 0.00 | 1.21 | 0.00 | 0.96 | -5.27 | 81.59 | -50.38 | 100.33 | 0.7820 | 590.0 | 476.2 | |
| 0.00 | 0.95 | 0.00 | 0.79 | -4.99 | 79.60 | -52.37 | 99.57 | 0.8023 | 354.0 | 279.0 | |
| 0.00 | 1.82 | 0.00 | 1.56 | -5.48 | 78.14 | -53.83 | 99.87 | 0.8179 | -353.0 | -264.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
