SDO HMI 2014-11-01 07:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.17 | 31.12 | 11.75 | 33.26 | 6.54 | 69.26 | -62.71 | 84.89 | 0.8881 | -234.4 | -129.4 | |
|
previous
or next observation for the same group /

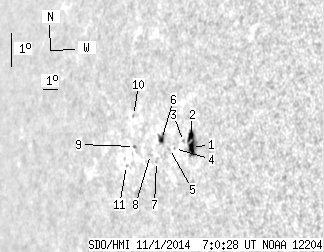

back to the solar disc SDO HMI 2014-11-01 07:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.50 | 18.45 | 4.65 | 19.09 | 6.48 | 70.31 | -61.66 | 84.99 | 0.8798 | -707.2 | -400.1 | |
| 3.90 | -1.00 | 4.04 | -1.00 | 6.80 | 70.18 | -61.79 | 84.62 | 0.8809 | -532.7 | 999999 | |
| 0.00 | 1.13 | 0.00 | 1.18 | 6.63 | 69.77 | -62.20 | 84.81 | 0.8843 | -184.0 | -88.4 | |
| 0.00 | 0.26 | 0.00 | 0.28 | 6.38 | 69.23 | -62.74 | 85.07 | 0.8886 | -132.0 | -133.3 | |
| 0.00 | 0.69 | 0.00 | 0.75 | 6.36 | 68.91 | -63.07 | 85.08 | 0.8912 | 284.0 | 288.2 | |
| 2.77 | 5.72 | 3.06 | 6.32 | 6.59 | 68.31 | -63.66 | 84.81 | 0.8958 | -296.2 | -190.3 | |
| 0.00 | 0.87 | 0.00 | 0.97 | 5.92 | 68.12 | -63.85 | 85.55 | 0.8974 | 433.0 | 455.6 | |
| 0.00 | 1.13 | 0.00 | 1.27 | 6.10 | 67.67 | -64.30 | 85.34 | 0.9008 | 254.0 | 230.9 | |
| 0.00 | 1.13 | 0.00 | 1.33 | 6.26 | 66.49 | -65.48 | 85.12 | 0.9095 | 522.0 | 489.0 | |
| 0.00 | 0.87 | 0.00 | 1.03 | 7.17 | 66.18 | -65.79 | 84.11 | 0.9115 | 274.0 | 283.4 | |
| 0.00 | 0.87 | 0.00 | 1.04 | 5.66 | 66.04 | -65.93 | 85.76 | 0.9129 | 267.0 | 233.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
