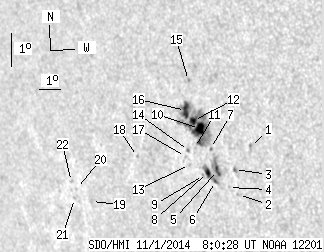

SDO HMI 2014-11-01 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.15 | 118.99 | 19.28 | 88.09 | -4.57 | 84.17 | -47.26 | 100.14 | 0.7459 | 377.2 | 338.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-01 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.99 | 0.00 | 1.41 | -4.72 | 86.63 | -44.80 | 100.94 | 0.7176 | 494.0 | 360.0 | |
| 0.00 | 1.21 | 0.00 | 0.87 | -6.20 | 85.97 | -45.45 | 102.78 | 0.7289 | -158.0 | -239.9 | |
| 0.00 | 1.73 | 0.00 | 1.25 | -5.45 | 85.88 | -45.55 | 101.74 | 0.7281 | -812.0 | -698.6 | |
| 0.00 | 0.43 | 0.00 | 0.31 | -6.01 | 85.56 | -45.86 | 102.41 | 0.7332 | -305.0 | -276.2 | |
| 3.03 | 23.12 | 2.21 | 16.94 | -5.52 | 85.14 | -46.29 | 101.64 | 0.7369 | -640.0 | 50.4 | |
| 0.78 | -5.00 | 0.57 | -5.00 | -5.86 | 85.01 | -46.41 | 102.06 | 0.7391 | 564.2 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.89 | -4.87 | 84.90 | -46.53 | 100.71 | 0.7382 | 481.0 | 279.0 | |
| 3.81 | -5.00 | 2.80 | -5.00 | -5.61 | 84.69 | -46.73 | 101.64 | 0.7422 | 568.5 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.90 | -5.71 | 84.51 | -46.92 | 101.72 | 0.7446 | 341.0 | 287.4 | |
| 8.05 | 77.16 | 5.93 | 56.95 | -4.29 | 84.47 | -46.96 | 99.84 | 0.7420 | 1057.6 | 518.9 | |
| 0.00 | 1.30 | 0.00 | 0.96 | -4.88 | 84.19 | -47.23 | 100.55 | 0.7464 | 435.0 | 413.7 | |
| 3.55 | -10.00 | 2.62 | -10.00 | -4.07 | 84.22 | -47.20 | 99.48 | 0.7444 | 793.5 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.58 | -5.41 | 83.92 | -47.51 | 101.18 | 0.7506 | 378.0 | 294.1 | |
| 0.00 | 1.30 | 0.00 | 0.97 | -4.99 | 83.92 | -47.51 | 100.62 | 0.7497 | 351.0 | 332.3 | |
| 0.00 | 1.39 | 0.00 | 1.02 | -2.87 | 84.08 | -47.34 | 97.86 | 0.7438 | 603.0 | 462.8 | |
| 6.93 | -10.00 | 5.15 | -10.00 | -3.78 | 83.89 | -47.54 | 99.03 | 0.7477 | 687.3 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.65 | -5.18 | 83.77 | -47.66 | 100.84 | 0.7518 | 307.0 | 254.5 | |
| 0.00 | 0.95 | 0.00 | 0.75 | -5.30 | 81.56 | -49.86 | 100.49 | 0.7764 | 538.0 | 436.2 | |
| 0.00 | 1.65 | 0.00 | 1.37 | -6.80 | 79.16 | -52.27 | 101.82 | 0.8045 | -217.0 | -253.5 | |
| 0.00 | 0.61 | 0.00 | 0.51 | -6.45 | 78.47 | -52.96 | 101.23 | 0.8108 | -448.0 | -441.6 | |
| 0.00 | 0.78 | 0.00 | 0.66 | -6.76 | 78.32 | -53.11 | 101.58 | 0.8129 | -471.0 | -424.4 | |
| 0.00 | 1.30 | 0.00 | 1.10 | -6.25 | 78.25 | -53.18 | 100.95 | 0.8127 | -599.0 | -501.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
