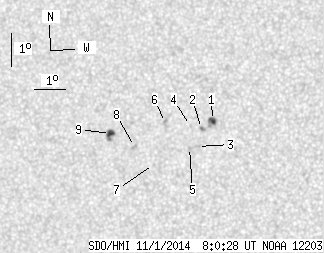

SDO HMI 2014-11-01 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.92 | 24.96 | 3.66 | 13.14 | 12.76 | 113.22 | -18.20 | 63.70 | 0.3412 | -369.8 | -217.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-01 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.94 | 6.50 | 1.54 | 3.40 | 13.11 | 114.69 | -16.73 | 61.03 | 0.3219 | -1015.2 | -785.4 | |
| 0.43 | 1.65 | 0.23 | 0.86 | 12.86 | 114.36 | -17.07 | 62.16 | 0.3250 | -1046.4 | -881.6 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 12.31 | 114.27 | -17.16 | 63.81 | 0.3226 | -744.0 | -535.3 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 12.94 | 114.00 | -17.42 | 62.39 | 0.3308 | -617.0 | -447.2 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 12.28 | 114.01 | -17.41 | 64.22 | 0.3261 | -804.0 | -669.1 | |
| 0.00 | 3.81 | 0.00 | 2.01 | 13.01 | 113.19 | -18.23 | 63.16 | 0.3431 | -924.0 | -630.8 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 11.74 | 112.90 | -18.53 | 66.94 | 0.3396 | -769.0 | -743.7 | |
| 0.00 | 2.42 | 0.00 | 1.28 | 12.27 | 112.25 | -19.17 | 66.16 | 0.3524 | 985.0 | 773.1 | |
| 3.55 | 6.76 | 1.89 | 3.59 | 12.64 | 111.44 | -19.98 | 65.98 | 0.3666 | 942.5 | 788.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
