SDO HMI 2014-11-01 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.75 | 26.51 | 3.56 | 13.87 | 12.70 | 114.00 | -16.88 | 61.89 | 0.3216 | -411.1 | -385.0 | |
|
previous
or next observation for the same group /

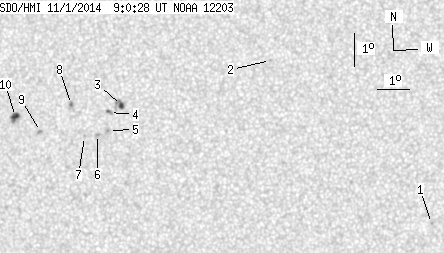

back to the solar disc SDO HMI 2014-11-01 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.43 | 9.67 | 124.56 | -6.32 | 49.36 | 0.1437 | -921.0 | -706.3 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 14.52 | 119.44 | -11.44 | 47.19 | 0.2630 | -877.0 | -659.9 | |
| 2.34 | 7.88 | 1.22 | 4.11 | 13.08 | 114.82 | -16.06 | 60.15 | 0.3121 | -1043.6 | -725.2 | |
| 0.00 | 2.42 | 0.00 | 1.27 | 12.86 | 114.45 | -16.43 | 61.29 | 0.3158 | -1075.0 | -791.1 | |
| 0.00 | 1.65 | 0.00 | 0.86 | 12.32 | 114.45 | -16.43 | 62.85 | 0.3119 | -902.0 | -610.4 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 12.20 | 114.11 | -16.77 | 63.66 | 0.3161 | -849.0 | -684.1 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 12.13 | 113.70 | -17.18 | 64.36 | 0.3217 | -780.0 | -571.8 | |
| 0.43 | 1.56 | 0.23 | 0.82 | 13.08 | 113.22 | -17.66 | 62.28 | 0.3352 | -961.8 | -852.8 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 12.25 | 112.29 | -18.59 | 65.62 | 0.3436 | 1069.0 | 785.7 | |
| 3.98 | 6.58 | 2.11 | 3.49 | 12.68 | 111.45 | -19.43 | 65.34 | 0.3587 | 966.4 | 652.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
