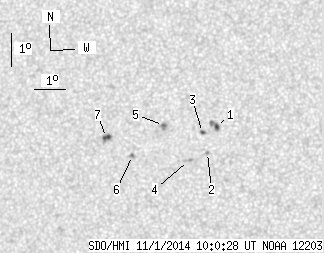

SDO HMI 2014-11-01 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.67 | 23.30 | 3.49 | 12.17 | 12.75 | 113.48 | -16.85 | 62.03 | 0.3214 | -311.5 | -365.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-01 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.73 | 6.15 | 0.90 | 3.20 | 13.12 | 114.90 | -15.43 | 59.09 | 0.3034 | -1077.1 | -787.4 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 12.33 | 114.67 | -15.67 | 61.77 | 0.3008 | -917.0 | -777.3 | |
| 0.87 | 2.42 | 0.45 | 1.26 | 12.93 | 114.47 | -15.86 | 60.29 | 0.3081 | -787.9 | -634.2 | |
| 0.00 | 3.12 | 0.00 | 1.62 | 12.08 | 114.08 | -16.25 | 63.32 | 0.3077 | -797.0 | -639.9 | |
| 0.87 | 3.12 | 0.45 | 1.63 | 13.12 | 113.21 | -17.12 | 61.49 | 0.3277 | -950.5 | -768.8 | |
| 0.43 | 1.65 | 0.23 | 0.86 | 12.19 | 112.29 | -18.05 | 65.16 | 0.3351 | 932.0 | 754.5 | |
| 2.77 | 5.54 | 1.46 | 2.93 | 12.71 | 111.41 | -18.92 | 64.70 | 0.3514 | 967.9 | 777.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
