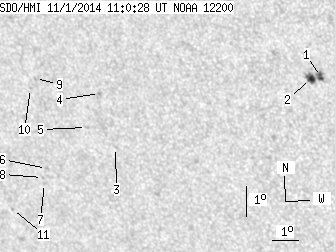

SDO HMI 2014-11-01 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.87 | 23.81 | 4.72 | 15.11 | -17.36 | 97.62 | -32.16 | 125.57 | 0.6224 | -87.1 | -116.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-01 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.94 | 13.42 | 1.76 | 8.03 | -16.20 | 102.47 | -27.31 | 127.88 | 0.5605 | 993.3 | 738.8 | |
| 4.93 | -1.00 | 2.96 | -1.00 | -16.27 | 102.11 | -27.68 | 127.64 | 0.5652 | 780.2 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.86 | -18.79 | 94.46 | -35.33 | 124.75 | 0.6685 | -736.0 | -564.1 | |
| 0.00 | 1.30 | 0.00 | 0.85 | -17.07 | 94.25 | -35.54 | 122.32 | 0.6599 | -724.0 | -661.7 | |
| 0.00 | 1.90 | 0.00 | 1.28 | -18.19 | 93.48 | -36.31 | 123.29 | 0.6752 | -634.0 | -556.0 | |
| 0.00 | 1.30 | 0.00 | 0.90 | -19.61 | 91.52 | -38.26 | 123.81 | 0.7044 | -801.0 | -636.7 | |
| 0.00 | 1.04 | 0.00 | 0.73 | -20.11 | 91.30 | -38.49 | 124.28 | 0.7097 | -195.0 | -231.4 | |
| 0.00 | 0.61 | 0.00 | 0.42 | -19.91 | 91.27 | -38.51 | 124.03 | 0.7088 | -629.0 | -527.9 | |
| 0.00 | 1.30 | 0.00 | 0.88 | -16.70 | 91.84 | -37.95 | 120.27 | 0.6843 | -376.0 | -431.5 | |
| 0.00 | 0.69 | 0.00 | 0.47 | -17.04 | 91.56 | -38.23 | 120.54 | 0.6892 | -625.0 | -518.8 | |
| 0.00 | 0.95 | 0.00 | 0.69 | -21.03 | 89.69 | -40.10 | 124.42 | 0.7311 | -533.0 | -445.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
