SDO HMI 2014-11-01 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.83 | 27.27 | 8.49 | 27.02 | 6.41 | 69.51 | -60.28 | 85.09 | 0.8679 | -206.0 | -153.1 | |
|
previous
or next observation for the same group /

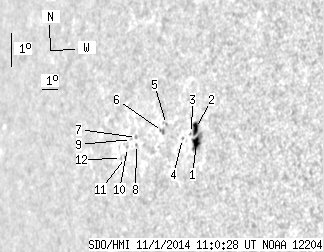

back to the solar disc SDO HMI 2014-11-01 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.76 | 16.97 | 4.57 | 16.29 | 6.33 | 70.63 | -59.16 | 85.22 | 0.8584 | -680.8 | -451.5 | |
| 4.07 | -1.00 | 3.92 | -1.00 | 6.74 | 70.49 | -59.30 | 84.74 | 0.8596 | -518.6 | 999999 | |
| 0.00 | 1.21 | 0.00 | 1.17 | 6.58 | 70.28 | -59.50 | 84.92 | 0.8614 | -64.0 | -119.1 | |
| 0.00 | 0.78 | 0.00 | 0.77 | 6.39 | 69.78 | -60.01 | 85.12 | 0.8659 | -249.0 | -217.9 | |
| 0.00 | 0.95 | 0.00 | 0.97 | 6.75 | 68.72 | -61.06 | 84.69 | 0.8748 | -428.0 | -387.4 | |
| 0.00 | 2.77 | 0.00 | 2.83 | 6.52 | 68.52 | -61.27 | 84.94 | 0.8766 | -486.0 | -264.5 | |
| 0.00 | 1.21 | 0.00 | 1.31 | 6.24 | 66.90 | -62.88 | 85.22 | 0.8898 | 492.0 | 501.4 | |
| 0.00 | 0.69 | 0.00 | 0.74 | 6.03 | 66.95 | -62.84 | 85.45 | 0.8895 | 400.0 | 376.8 | |
| 0.00 | 0.26 | 0.00 | 0.28 | 6.16 | 66.59 | -63.20 | 85.30 | 0.8923 | 456.0 | 472.7 | |
| 0.00 | 0.78 | 0.00 | 0.85 | 5.90 | 66.37 | -63.42 | 85.58 | 0.8941 | 446.0 | 405.8 | |
| 0.00 | 1.04 | 0.00 | 1.14 | 5.60 | 66.30 | -63.49 | 85.92 | 0.8948 | 504.0 | 467.3 | |
| 0.00 | 0.61 | 0.00 | 0.67 | 5.55 | 66.03 | -63.75 | 85.96 | 0.8968 | 264.0 | 241.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
