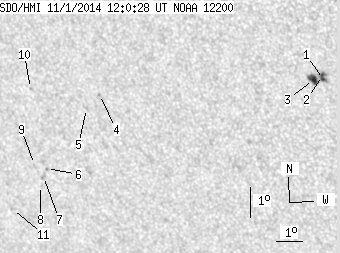

SDO HMI 2014-11-01 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.88 | 21.65 | 4.69 | 13.71 | -17.61 | 97.42 | -31.82 | 126.22 | 0.6199 | -30.8 | -127.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-01 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.56 | 12.55 | 0.93 | 7.47 | -16.27 | 102.51 | -26.73 | 128.57 | 0.5544 | 915.8 | 733.6 | |
| 1.39 | -1.00 | 0.82 | -1.00 | -16.15 | 102.49 | -26.75 | 128.37 | 0.5535 | 1039.6 | 999999 | |
| 4.93 | -1.00 | 2.94 | -1.00 | -16.29 | 102.16 | -27.08 | 128.24 | 0.5585 | 784.3 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.62 | -17.08 | 94.24 | -35.00 | 122.71 | 0.6540 | -604.0 | -587.0 | |
| 0.00 | 0.78 | 0.00 | 0.51 | -17.55 | 93.63 | -35.61 | 122.92 | 0.6636 | -706.0 | -523.9 | |
| 0.00 | 1.04 | 0.00 | 0.72 | -19.58 | 91.55 | -37.69 | 124.14 | 0.6983 | -682.0 | -625.4 | |
| 0.00 | 2.86 | 0.00 | 1.98 | -19.85 | 91.35 | -37.89 | 124.35 | 0.7020 | -581.0 | -537.3 | |
| 0.00 | 0.52 | 0.00 | 0.36 | -20.15 | 91.15 | -38.09 | 124.59 | 0.7059 | -377.0 | -407.2 | |
| 0.00 | 0.52 | 0.00 | 0.36 | -19.47 | 91.10 | -38.14 | 123.71 | 0.7023 | -237.0 | -249.8 | |
| 0.00 | 1.04 | 0.00 | 0.70 | -17.01 | 91.58 | -37.66 | 120.85 | 0.6829 | -678.0 | -566.8 | |
| 0.00 | 1.39 | 0.00 | 0.99 | -21.00 | 89.74 | -39.50 | 124.75 | 0.7250 | -536.0 | -415.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
