SDO HMI 2014-11-01 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.58 | 29.17 | 3.41 | 15.15 | 12.75 | 113.73 | -15.51 | 60.12 | 0.3020 | -426.5 | -191.4 | |
|
previous
or next observation for the same group /

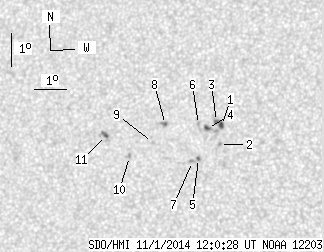

back to the solar disc SDO HMI 2014-11-01 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.90 | 5.97 | 0.98 | 3.09 | 13.10 | 115.11 | -14.13 | 56.98 | 0.2849 | -1045.9 | -798.7 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 12.53 | 115.08 | -14.16 | 58.80 | 0.2805 | -844.0 | -618.9 | |
| 1.04 | -1.00 | 0.54 | -1.00 | 13.22 | 114.94 | -14.30 | 56.92 | 0.2882 | -941.2 | 999999 | |
| 1.47 | 5.11 | 0.76 | 2.64 | 13.00 | 114.67 | -14.57 | 58.02 | 0.2902 | -841.0 | -612.7 | |
| 0.61 | 1.56 | 0.31 | 0.81 | 12.10 | 114.44 | -14.80 | 61.18 | 0.2863 | -930.7 | -796.0 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 13.12 | 114.38 | -14.86 | 58.16 | 0.2953 | -598.0 | -471.8 | |
| 0.00 | 1.90 | 0.00 | 0.98 | 12.00 | 114.26 | -14.98 | 61.75 | 0.2883 | -804.0 | -556.7 | |
| 0.61 | 2.77 | 0.32 | 1.44 | 13.10 | 113.34 | -15.90 | 59.84 | 0.3100 | -909.9 | -745.6 | |
| 0.00 | 1.47 | 0.00 | 0.77 | 12.55 | 112.96 | -16.28 | 61.96 | 0.3114 | 891.0 | 536.2 | |
| 0.00 | 2.68 | 0.00 | 1.40 | 12.12 | 112.26 | -16.98 | 64.13 | 0.3188 | 1022.0 | 753.0 | |
| 0.95 | 5.02 | 0.50 | 2.64 | 12.73 | 111.48 | -17.76 | 63.33 | 0.3344 | 971.0 | 580.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
