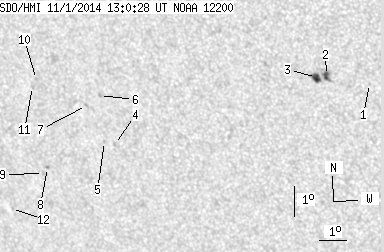

SDO HMI 2014-11-01 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.35 | 23.54 | 4.36 | 14.78 | -17.26 | 97.47 | -31.22 | 126.24 | 0.6115 | -169.7 | -204.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-01 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.30 | -16.40 | 103.98 | -24.71 | 130.90 | 0.5327 | -551.0 | -382.2 | |
| 2.68 | 5.37 | 1.59 | 3.17 | -16.19 | 102.53 | -26.16 | 129.03 | 0.5472 | 990.3 | 755.3 | |
| 4.67 | 6.66 | 2.77 | 3.95 | -16.27 | 102.17 | -26.52 | 128.77 | 0.5519 | 800.0 | 615.7 | |
| 0.00 | 1.38 | 0.00 | 0.91 | -18.71 | 94.39 | -34.30 | 125.38 | 0.6570 | -642.0 | -529.2 | |
| 0.00 | 0.95 | 0.00 | 0.63 | -18.63 | 94.03 | -34.67 | 125.01 | 0.6604 | -598.0 | -527.1 | |
| 0.00 | 0.95 | 0.00 | 0.62 | -17.15 | 94.17 | -34.52 | 123.14 | 0.6491 | -792.0 | -648.6 | |
| 0.00 | 1.47 | 0.00 | 0.96 | -17.50 | 93.60 | -35.09 | 123.20 | 0.6576 | -720.0 | -546.6 | |
| 0.00 | 1.04 | 0.00 | 0.71 | -19.58 | 91.56 | -37.13 | 124.51 | 0.6925 | -733.0 | -619.9 | |
| 0.00 | 1.56 | 0.00 | 1.07 | -19.79 | 91.35 | -37.34 | 124.63 | 0.6960 | -586.0 | -586.7 | |
| 0.00 | 1.30 | 0.00 | 0.87 | -16.75 | 91.84 | -36.85 | 121.02 | 0.6724 | -433.0 | -411.5 | |
| 0.00 | 1.73 | 0.00 | 1.16 | -16.98 | 91.63 | -37.06 | 121.19 | 0.6761 | -560.0 | -464.6 | |
| 0.00 | 0.61 | 0.00 | 0.43 | -21.01 | 89.69 | -39.00 | 125.07 | 0.7201 | -612.0 | -539.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
