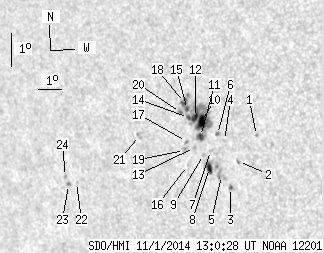

SDO HMI 2014-11-01 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.61 | 102.56 | 17.95 | 72.26 | -4.73 | 84.22 | -44.47 | 101.03 | 0.7135 | 358.8 | 284.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-01 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.76 | -4.58 | 86.85 | -41.85 | 101.54 | 0.6811 | 595.0 | 440.3 | |
| 0.00 | 1.38 | 0.00 | 0.95 | -5.40 | 86.05 | -42.64 | 102.48 | 0.6931 | -483.0 | -525.6 | |
| 0.69 | 1.73 | 0.48 | 1.20 | -6.21 | 85.64 | -43.05 | 103.49 | 0.7002 | -565.0 | -401.4 | |
| 0.00 | 1.04 | 0.00 | 0.72 | -4.80 | 85.53 | -43.16 | 101.47 | 0.6979 | -210.0 | -203.2 | |
| 0.00 | 6.06 | 0.00 | 4.21 | -5.86 | 85.31 | -43.38 | 102.90 | 0.7033 | -412.0 | -220.6 | |
| 0.43 | 1.47 | 0.30 | 1.02 | -4.63 | 85.25 | -43.44 | 101.16 | 0.7009 | 551.0 | 484.9 | |
| 0.00 | 1.56 | 0.00 | 1.09 | -5.13 | 84.92 | -43.77 | 101.77 | 0.7061 | -55.0 | -15.3 | |
| 4.76 | 10.65 | 3.33 | 7.44 | -5.65 | 84.83 | -43.86 | 102.46 | 0.7085 | 512.2 | 5.8 | |
| 0.00 | 0.95 | 0.00 | 0.67 | -5.27 | 84.62 | -44.07 | 101.87 | 0.7101 | 690.0 | 602.4 | |
| 7.01 | 59.89 | 4.90 | 41.95 | -4.27 | 84.62 | -44.07 | 100.49 | 0.7078 | 1030.2 | 589.0 | |
| 3.46 | -10.00 | 2.43 | -10.00 | -4.73 | 84.54 | -44.15 | 101.11 | 0.7098 | 675.0 | 999999 | |
| 3.89 | -10.00 | 2.73 | -10.00 | -4.16 | 84.37 | -44.32 | 100.28 | 0.7105 | 735.4 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.16 | -5.07 | 84.26 | -44.43 | 101.51 | 0.7140 | 582.0 | 365.0 | |
| 1.04 | -10.00 | 0.73 | -10.00 | -4.18 | 84.08 | -44.61 | 100.23 | 0.7141 | 484.4 | 999999 | |
| 1.04 | -10.00 | 0.73 | -10.00 | -3.94 | 84.05 | -44.64 | 99.89 | 0.7139 | 642.5 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.68 | -5.63 | 83.91 | -44.78 | 102.18 | 0.7195 | 295.0 | 227.2 | |
| 0.00 | 1.38 | 0.00 | 0.98 | -4.91 | 83.94 | -44.76 | 101.20 | 0.7175 | 496.0 | 452.6 | |
| 2.68 | -10.00 | 1.89 | -10.00 | -3.74 | 83.94 | -44.75 | 99.58 | 0.7148 | 642.8 | 999999 | |
| 0.00 | 2.86 | 0.00 | 2.03 | -5.19 | 83.83 | -44.86 | 101.55 | 0.7194 | 462.0 | 293.8 | |
| 0.61 | 2.60 | 0.43 | 1.84 | -4.05 | 83.75 | -44.94 | 99.96 | 0.7177 | 287.6 | 200.7 | |
| 0.00 | 3.38 | 0.00 | 2.48 | -4.84 | 81.92 | -46.77 | 100.59 | 0.7409 | -339.0 | -383.3 | |
| 0.00 | 0.61 | 0.00 | 0.48 | -6.43 | 78.90 | -49.79 | 101.92 | 0.7780 | -578.0 | -508.0 | |
| 0.00 | 1.64 | 0.00 | 1.30 | -6.51 | 78.51 | -50.18 | 101.93 | 0.7822 | -631.0 | -545.7 | |
| 0.00 | 1.64 | 0.00 | 1.30 | -6.28 | 78.40 | -50.29 | 101.61 | 0.7829 | -601.0 | -464.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
