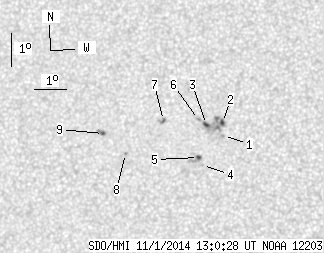

SDO HMI 2014-11-01 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.72 | 35.06 | 2.95 | 18.13 | 12.85 | 114.28 | -14.41 | 58.13 | 0.2869 | -330.4 | -392.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-01 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.58 | 12.75 | 115.27 | -13.42 | 56.77 | 0.2718 | -935.0 | -655.9 | |
| 1.38 | 18.52 | 0.71 | 9.55 | 13.14 | 115.22 | -13.47 | 55.65 | 0.2760 | -1059.4 | -542.7 | |
| 1.82 | -2.00 | 0.94 | -2.00 | 13.07 | 114.72 | -13.97 | 56.78 | 0.2824 | -632.6 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 11.84 | 114.66 | -14.03 | 60.77 | 0.2731 | -753.0 | -470.6 | |
| 1.13 | 5.37 | 0.58 | 2.77 | 12.08 | 114.52 | -14.17 | 60.23 | 0.2770 | -887.0 | -649.6 | |
| 0.00 | 1.38 | 0.00 | 0.72 | 13.22 | 114.46 | -14.23 | 56.80 | 0.2873 | -727.0 | -508.1 | |
| 0.61 | 3.12 | 0.31 | 1.62 | 13.17 | 113.36 | -15.33 | 58.77 | 0.3025 | -815.6 | -659.6 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 12.15 | 112.22 | -16.47 | 63.37 | 0.3115 | 931.0 | 811.2 | |
| 0.78 | 3.64 | 0.41 | 1.90 | 12.74 | 111.48 | -17.21 | 62.63 | 0.3265 | 1033.0 | 797.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
