SDO HMI 2014-11-01 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.55 | 47.51 | 6.46 | 24.48 | 12.76 | 114.50 | -13.64 | 57.05 | 0.2752 | -177.8 | -211.8 | |
|
previous
or next observation for the same group /

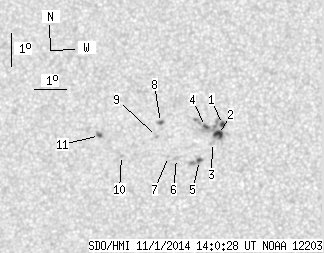

back to the solar disc SDO HMI 2014-11-01 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.99 | 28.39 | 1.02 | 14.60 | 13.15 | 115.30 | -12.84 | 54.39 | 0.2674 | -915.3 | -393.4 | |
| 5.37 | -1.00 | 2.76 | -1.00 | 12.85 | 115.19 | -12.95 | 55.56 | 0.2662 | -882.5 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.76 | 12.60 | 115.02 | -13.13 | 56.68 | 0.2664 | 202.0 | 183.2 | |
| 1.56 | -1.00 | 0.80 | -1.00 | 13.08 | 114.77 | -13.37 | 55.64 | 0.2741 | -656.8 | 999999 | |
| 1.38 | 5.88 | 0.71 | 3.02 | 12.06 | 114.64 | -13.51 | 59.16 | 0.2672 | -884.7 | -588.5 | |
| 0.00 | 2.25 | 0.00 | 1.16 | 12.10 | 113.91 | -14.23 | 60.24 | 0.2781 | 260.0 | 129.3 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 12.16 | 113.66 | -14.48 | 60.48 | 0.2822 | 553.0 | 438.9 | |
| 0.87 | 3.03 | 0.45 | 1.57 | 13.18 | 113.35 | -14.79 | 57.88 | 0.2949 | -822.4 | -600.8 | |
| 0.00 | 1.47 | 0.00 | 0.76 | 12.75 | 113.25 | -14.90 | 59.30 | 0.2929 | 977.0 | 736.5 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 12.16 | 112.18 | -15.97 | 62.66 | 0.3041 | 797.0 | 668.0 | |
| 1.38 | 3.03 | 0.72 | 1.58 | 12.75 | 111.44 | -16.70 | 61.94 | 0.3191 | 987.3 | 829.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
