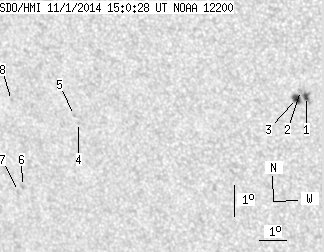

SDO HMI 2014-11-01 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.58 | 20.25 | 3.86 | 12.36 | -16.98 | 99.01 | -28.58 | 128.18 | 0.5800 | 98.0 | 92.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-01 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.34 | 6.23 | 1.37 | 3.65 | -16.22 | 102.57 | -25.02 | 130.29 | 0.5346 | 994.1 | 739.1 | |
| 0.00 | 1.82 | 0.00 | 1.06 | -16.03 | 102.39 | -25.20 | 129.81 | 0.5349 | 750.0 | 690.5 | |
| 4.24 | 5.88 | 2.49 | 3.46 | -16.29 | 102.21 | -25.38 | 130.01 | 0.5392 | 810.2 | 615.3 | |
| 0.00 | 1.04 | 0.00 | 0.67 | -17.36 | 94.24 | -33.35 | 124.28 | 0.6374 | -549.0 | -533.5 | |
| 0.00 | 1.04 | 0.00 | 0.67 | -17.14 | 94.13 | -33.46 | 123.91 | 0.6371 | -622.0 | -552.8 | |
| 0.00 | 1.99 | 0.00 | 1.34 | -19.53 | 91.59 | -36.00 | 125.22 | 0.6804 | -595.0 | -481.3 | |
| 0.00 | 1.38 | 0.00 | 0.94 | -19.70 | 91.39 | -36.20 | 125.29 | 0.6837 | -669.0 | -599.6 | |
| 0.00 | 0.87 | 0.00 | 0.57 | -16.76 | 91.83 | -35.76 | 121.75 | 0.6604 | -728.0 | -516.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
