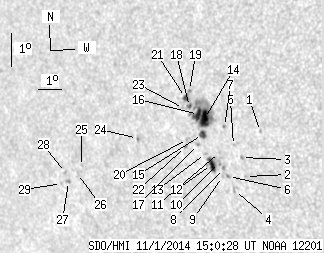

SDO HMI 2014-11-01 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.13 | 92.51 | 17.96 | 63.97 | -4.73 | 84.20 | -43.39 | 101.32 | 0.7003 | 289.5 | 252.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-01 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.69 | -4.55 | 86.91 | -40.68 | 101.85 | 0.6663 | 540.0 | 481.8 | |
| 0.00 | 0.87 | 0.00 | 0.58 | -5.94 | 86.20 | -41.39 | 103.65 | 0.6791 | 497.0 | 393.6 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -5.38 | 86.09 | -41.50 | 102.79 | 0.6788 | -728.0 | -557.2 | |
| 0.00 | 1.99 | 0.00 | 1.35 | -6.39 | 85.72 | -41.88 | 104.13 | 0.6864 | -516.0 | -454.3 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -5.03 | 85.80 | -41.79 | 102.20 | 0.6815 | -599.0 | -545.2 | |
| 0.00 | 1.47 | 0.00 | 1.00 | -5.98 | 85.51 | -42.08 | 103.47 | 0.6877 | -583.0 | -437.5 | |
| 0.00 | 1.30 | 0.00 | 0.88 | -4.47 | 85.48 | -42.11 | 101.31 | 0.6841 | 460.0 | 450.9 | |
| 0.00 | 1.30 | 0.00 | 0.88 | -5.75 | 85.33 | -42.26 | 103.09 | 0.6893 | -659.0 | -539.9 | |
| 0.00 | 0.87 | 0.00 | 0.59 | -5.99 | 85.27 | -42.32 | 103.41 | 0.6907 | 285.0 | 333.9 | |
| 0.00 | 1.90 | 0.00 | 1.30 | -5.57 | 85.19 | -42.40 | 102.79 | 0.6906 | -654.0 | -488.2 | |
| 0.00 | 0.87 | 0.00 | 0.59 | -5.27 | 85.22 | -42.38 | 102.37 | 0.6895 | -686.0 | -557.9 | |
| 5.36 | 8.22 | 3.68 | 5.64 | -5.65 | 84.86 | -42.74 | 102.80 | 0.6949 | 573.8 | 430.6 | |
| 0.00 | 1.21 | 0.00 | 0.83 | -5.33 | 84.64 | -42.95 | 102.28 | 0.6967 | 678.0 | 540.4 | |
| 10.21 | 50.62 | 7.00 | 34.74 | -4.27 | 84.68 | -42.91 | 100.80 | 0.6935 | 1053.6 | 549.9 | |
| 3.12 | 4.85 | 2.14 | 3.33 | -4.76 | 84.56 | -43.03 | 101.46 | 0.6962 | 746.1 | 536.2 | |
| 4.41 | -14.00 | 3.04 | -14.00 | -4.17 | 84.45 | -43.15 | 100.58 | 0.6962 | 786.5 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.96 | -5.07 | 84.33 | -43.26 | 101.84 | 0.6998 | 561.0 | 460.4 | |
| 0.95 | -14.00 | 0.66 | -14.00 | -3.94 | 84.09 | -43.50 | 100.18 | 0.7001 | 663.2 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.78 | -3.46 | 84.12 | -43.47 | 99.51 | 0.6986 | 687.0 | 654.2 | |
| 0.00 | 1.82 | 0.00 | 1.26 | -4.94 | 83.93 | -43.66 | 101.54 | 0.7044 | 476.0 | 429.6 | |
| 2.08 | -14.00 | 1.44 | -14.00 | -3.68 | 83.94 | -43.65 | 99.77 | 0.7013 | 650.0 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.97 | -5.16 | 83.83 | -43.76 | 101.81 | 0.7061 | 457.0 | 301.2 | |
| 0.00 | 1.47 | 0.00 | 1.02 | -4.02 | 83.84 | -43.76 | 100.22 | 0.7033 | 393.0 | 289.9 | |
| 0.00 | 1.56 | 0.00 | 1.12 | -5.03 | 81.81 | -45.78 | 101.09 | 0.7298 | -654.0 | -525.9 | |
| 0.00 | 0.61 | 0.00 | 0.46 | -6.01 | 79.24 | -48.35 | 101.74 | 0.7613 | -645.0 | -619.1 | |
| 0.00 | 1.21 | 0.00 | 0.93 | -6.24 | 79.03 | -48.56 | 101.98 | 0.7641 | -606.0 | -570.2 | |
| 0.00 | 1.90 | 0.00 | 1.47 | -6.51 | 78.58 | -49.01 | 102.21 | 0.7696 | -666.0 | -553.9 | |
| 0.00 | 1.30 | 0.00 | 1.00 | -6.24 | 78.48 | -49.11 | 101.84 | 0.7701 | -652.0 | -538.5 | |
| 0.00 | 0.78 | 0.00 | 0.61 | -6.58 | 78.25 | -49.34 | 102.23 | 0.7734 | -375.0 | -302.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
