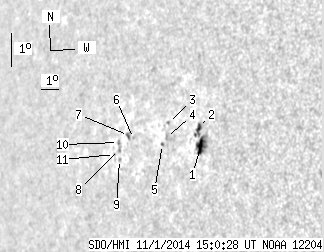

SDO HMI 2014-11-01 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.96 | 34.70 | 7.16 | 32.51 | 6.21 | 69.26 | -58.34 | 85.37 | 0.8505 | -197.9 | -119.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-01 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.06 | 20.94 | 5.44 | 18.79 | 6.18 | 70.88 | -56.72 | 85.45 | 0.8359 | -715.9 | -497.1 | |
| 1.90 | -1.00 | 1.72 | -1.00 | 6.74 | 70.67 | -56.92 | 84.78 | 0.8377 | -538.5 | 999999 | |
| 0.00 | 1.21 | 0.00 | 1.14 | 6.78 | 68.96 | -58.63 | 84.70 | 0.8536 | -358.0 | -380.8 | |
| 0.00 | 1.73 | 0.00 | 1.64 | 6.33 | 68.93 | -58.66 | 85.23 | 0.8539 | -378.0 | -286.2 | |
| 0.00 | 1.30 | 0.00 | 1.23 | 6.10 | 68.74 | -58.85 | 85.49 | 0.8557 | -265.0 | -198.9 | |
| 0.00 | 0.69 | 0.00 | 0.69 | 6.17 | 66.99 | -60.60 | 85.36 | 0.8710 | 467.0 | 473.4 | |
| 0.00 | 3.03 | 0.00 | 3.06 | 6.24 | 66.67 | -60.92 | 85.27 | 0.8738 | 685.0 | 535.9 | |
| 0.00 | 2.16 | 0.00 | 2.22 | 5.79 | 66.19 | -61.40 | 85.77 | 0.8779 | 450.0 | 383.6 | |
| 0.00 | 1.30 | 0.00 | 1.33 | 5.49 | 66.24 | -61.35 | 86.11 | 0.8775 | 486.0 | 410.5 | |
| 0.00 | 1.73 | 0.00 | 1.78 | 5.99 | 66.09 | -61.50 | 85.54 | 0.8787 | 304.0 | 243.4 | |
| 0.00 | 0.61 | 0.00 | 0.63 | 5.62 | 65.91 | -61.69 | 85.95 | 0.8803 | 232.0 | 183.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
