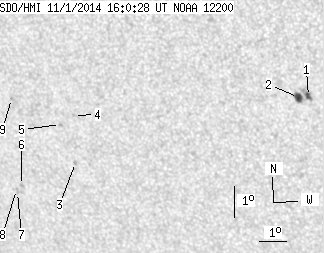

SDO HMI 2014-11-01 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.49 | 20.88 | 3.79 | 12.74 | -17.22 | 98.37 | -28.67 | 128.46 | 0.5828 | -157.6 | -25.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-01 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.99 | 6.06 | 1.16 | 3.53 | -16.26 | 102.59 | -24.45 | 131.00 | 0.5285 | 986.1 | 823.8 | |
| 4.50 | 6.84 | 2.63 | 3.99 | -16.31 | 102.25 | -24.79 | 130.67 | 0.5328 | 801.9 | 595.8 | |
| 0.00 | 1.56 | 0.00 | 1.01 | -18.70 | 93.85 | -33.19 | 126.21 | 0.6449 | -707.0 | -592.3 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -17.18 | 94.10 | -32.94 | 124.36 | 0.6316 | -656.0 | -550.1 | |
| 0.00 | 1.21 | 0.00 | 0.78 | -17.49 | 93.55 | -33.49 | 124.36 | 0.6399 | -712.0 | -576.0 | |
| 0.00 | 1.56 | 0.00 | 1.04 | -19.54 | 91.58 | -35.46 | 125.61 | 0.6748 | -767.0 | -522.8 | |
| 0.00 | 0.87 | 0.00 | 0.58 | -19.78 | 91.37 | -35.67 | 125.76 | 0.6786 | -700.0 | -600.2 | |
| 0.00 | 1.04 | 0.00 | 0.70 | -19.68 | 91.35 | -35.69 | 125.63 | 0.6781 | -708.0 | -582.2 | |
| 0.00 | 0.87 | 0.00 | 0.56 | -16.74 | 91.86 | -35.18 | 122.11 | 0.6538 | -703.0 | -608.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
