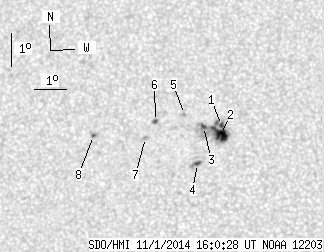

SDO HMI 2014-11-01 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.13 | 58.23 | 9.78 | 29.82 | 12.83 | 115.02 | -12.03 | 53.58 | 0.2534 | -694.4 | -270.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-01 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.47 | 45.60 | 0.75 | 23.33 | 13.13 | 115.45 | -11.59 | 51.71 | 0.2504 | -1071.1 | -326.3 | |
| 13.41 | -1.00 | 6.86 | -1.00 | 12.86 | 115.43 | -11.61 | 52.64 | 0.2479 | -1183.7 | 999999 | |
| 1.47 | -1.00 | 0.75 | -1.00 | 13.09 | 114.89 | -12.15 | 53.10 | 0.2575 | -747.8 | 999999 | |
| 1.30 | 5.19 | 0.66 | 2.65 | 11.98 | 114.76 | -12.28 | 57.08 | 0.2490 | -908.7 | -679.3 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 13.45 | 114.28 | -12.76 | 53.29 | 0.2692 | -705.0 | -554.2 | |
| 0.87 | 2.16 | 0.45 | 1.12 | 13.22 | 113.38 | -13.66 | 55.75 | 0.2794 | -834.5 | -679.1 | |
| 0.00 | 2.34 | 0.00 | 1.20 | 12.74 | 113.10 | -13.95 | 57.76 | 0.2792 | 1014.0 | 841.2 | |
| 0.61 | 1.82 | 0.31 | 0.94 | 12.77 | 111.45 | -15.59 | 60.33 | 0.3030 | 1081.7 | 905.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
