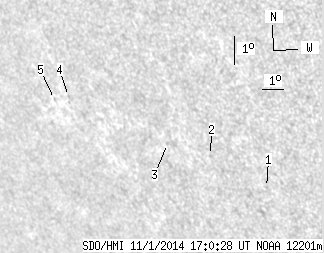

SDO HMI 2014-11-01 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.50 | 0.00 | 3.63 | -20.37 | 79.80 | -46.69 | 120.23 | 0.7908 | 280.8 | 288.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-01 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.58 | -21.79 | 84.41 | -42.08 | 124.16 | 0.7543 | 122.0 | 139.4 | |
| 0.00 | 1.04 | 0.00 | 0.80 | -20.85 | 82.30 | -44.19 | 121.91 | 0.7697 | 170.0 | 256.4 | |
| 0.00 | 1.12 | 0.00 | 0.90 | -20.56 | 80.46 | -46.03 | 120.65 | 0.7856 | 154.0 | 246.7 | |
| 0.00 | 0.78 | 0.00 | 0.67 | -19.28 | 76.27 | -50.22 | 117.33 | 0.8188 | 619.0 | 505.9 | |
| 0.00 | 0.78 | 0.00 | 0.68 | -19.43 | 75.51 | -50.98 | 117.20 | 0.8260 | 339.0 | 296.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
