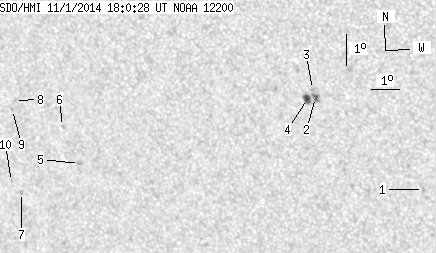

SDO HMI 2014-11-01 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.93 | 19.12 | 2.85 | 11.54 | -17.20 | 98.80 | -27.14 | 130.02 | 0.5665 | -2.5 | 34.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-01 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.70 | -19.12 | 105.88 | -20.06 | 140.53 | 0.5120 | 755.0 | 600.6 | |
| 1.47 | 3.98 | 0.85 | 2.30 | -16.26 | 102.61 | -23.33 | 132.29 | 0.5160 | 1042.5 | 853.0 | |
| 0.00 | 1.30 | 0.00 | 0.75 | -16.01 | 102.54 | -23.40 | 131.83 | 0.5143 | 894.0 | 652.7 | |
| 3.46 | 5.71 | 2.00 | 3.31 | -16.30 | 102.34 | -23.60 | 132.03 | 0.5194 | 837.7 | 648.7 | |
| 0.00 | 1.73 | 0.00 | 1.10 | -18.68 | 93.87 | -32.06 | 127.08 | 0.6327 | -736.0 | -643.5 | |
| 0.00 | 1.38 | 0.00 | 0.88 | -17.51 | 93.49 | -32.45 | 125.19 | 0.6284 | -754.0 | -574.9 | |
| 0.00 | 1.21 | 0.00 | 0.80 | -19.72 | 91.44 | -34.50 | 126.55 | 0.6659 | -708.0 | -627.8 | |
| 0.00 | 0.87 | 0.00 | 0.56 | -16.75 | 91.85 | -34.09 | 122.91 | 0.6415 | -677.0 | -599.9 | |
| 0.00 | 0.95 | 0.00 | 0.62 | -17.04 | 91.72 | -34.22 | 123.21 | 0.6450 | -733.0 | -589.7 | |
| 0.00 | 0.78 | 0.00 | 0.52 | -19.38 | 91.14 | -34.80 | 125.88 | 0.6667 | -630.0 | -536.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
