SDO HMI 2014-11-01 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.69 | 32.88 | 8.34 | 29.61 | 6.13 | 69.06 | -56.88 | 85.49 | 0.8368 | -247.9 | -51.0 | |
|
previous
or next observation for the same group /

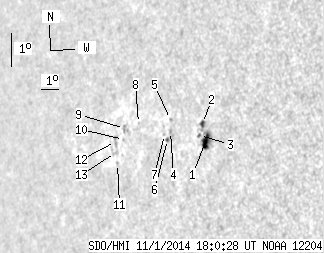

back to the solar disc SDO HMI 2014-11-01 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.44 | 11.77 | 6.37 | 10.06 | 6.14 | 71.06 | -54.88 | 85.54 | 0.8179 | -782.9 | -628.4 | |
| 1.64 | 4.41 | 1.42 | 3.80 | 6.67 | 70.82 | -55.12 | 84.89 | 0.8202 | -529.8 | -523.2 | |
| 0.00 | 1.30 | 0.00 | 1.12 | 6.30 | 70.72 | -55.22 | 85.34 | 0.8213 | -380.0 | -290.3 | |
| 0.00 | 1.12 | 0.00 | 1.01 | 6.32 | 69.15 | -56.78 | 85.28 | 0.8365 | -377.0 | -313.3 | |
| 0.00 | 1.04 | 0.00 | 0.93 | 6.68 | 69.09 | -56.84 | 84.85 | 0.8370 | -579.0 | -442.5 | |
| 0.61 | 1.73 | 0.55 | 1.56 | 6.08 | 69.03 | -56.91 | 85.57 | 0.8377 | -355.0 | -290.5 | |
| 0.00 | 0.95 | 0.00 | 0.86 | 6.21 | 68.84 | -57.10 | 85.40 | 0.8395 | -232.0 | -182.4 | |
| 0.00 | 0.26 | 0.00 | 0.24 | 6.45 | 67.33 | -58.61 | 85.09 | 0.8535 | 509.0 | 453.7 | |
| 0.00 | 2.68 | 0.00 | 2.59 | 6.25 | 66.54 | -59.40 | 85.30 | 0.8605 | 592.0 | 513.2 | |
| 0.00 | 0.87 | 0.00 | 0.84 | 5.92 | 66.54 | -59.40 | 85.69 | 0.8606 | 557.0 | 508.5 | |
| 0.00 | 0.61 | 0.00 | 0.59 | 5.19 | 66.30 | -59.63 | 86.53 | 0.8629 | 434.0 | 355.0 | |
| 0.00 | 3.72 | 0.00 | 3.64 | 5.83 | 66.08 | -59.86 | 85.78 | 0.8647 | 409.0 | 337.4 | |
| 0.00 | 2.42 | 0.00 | 2.37 | 5.50 | 66.13 | -59.80 | 86.16 | 0.8643 | 455.0 | 287.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
