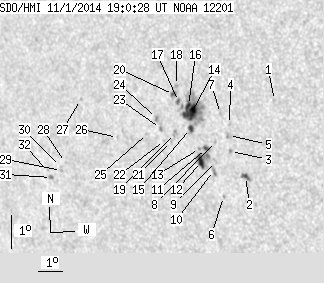

SDO HMI 2014-11-01 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.43 | 114.80 | 21.48 | 76.29 | -4.79 | 84.52 | -40.87 | 102.15 | 0.6691 | 334.0 | 211.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-01 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.87 | -3.71 | 87.95 | -37.43 | 101.59 | 0.6214 | 420.0 | 374.8 | |
| 2.25 | 4.76 | 1.45 | 3.08 | -6.06 | 86.69 | -38.69 | 104.76 | 0.6452 | 859.8 | 673.0 | |
| 0.00 | 1.30 | 0.00 | 0.84 | -5.33 | 86.17 | -39.21 | 103.47 | 0.6496 | -640.0 | -464.8 | |
| 0.00 | 0.87 | 0.00 | 0.56 | -4.51 | 86.19 | -39.19 | 102.25 | 0.6470 | 552.0 | 425.7 | |
| 0.00 | 3.11 | 0.00 | 2.02 | -4.85 | 86.13 | -39.25 | 102.74 | 0.6487 | -727.0 | -578.6 | |
| 0.00 | 1.04 | 0.00 | 0.68 | -6.70 | 85.78 | -39.61 | 105.38 | 0.6590 | -652.0 | -530.0 | |
| 0.00 | 1.21 | 0.00 | 0.79 | -4.20 | 85.86 | -39.52 | 101.67 | 0.6504 | 385.0 | 317.0 | |
| 0.00 | 1.04 | 0.00 | 0.68 | -5.05 | 85.61 | -39.77 | 102.87 | 0.6560 | -553.0 | -433.4 | |
| 0.00 | 2.16 | 0.00 | 1.42 | -5.66 | 85.56 | -39.82 | 103.76 | 0.6584 | -179.0 | -234.6 | |
| 0.00 | 3.46 | 0.00 | 2.28 | -5.93 | 85.46 | -39.92 | 104.13 | 0.6606 | -674.0 | -503.1 | |
| 1.64 | 17.30 | 1.08 | 11.43 | -5.28 | 85.24 | -40.14 | 103.09 | 0.6614 | -760.7 | -32.6 | |
| 5.62 | -11.00 | 3.72 | -11.00 | -5.68 | 85.01 | -40.37 | 103.61 | 0.6655 | 644.2 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.69 | -5.29 | 84.97 | -40.42 | 103.02 | 0.6650 | 574.0 | 524.0 | |
| 14.53 | 52.69 | 9.62 | 34.81 | -4.22 | 84.73 | -40.66 | 101.36 | 0.6651 | 1058.6 | 515.2 | |
| 2.42 | -14.00 | 1.61 | -14.00 | -4.71 | 84.66 | -40.73 | 102.05 | 0.6673 | 733.5 | 999999 | |
| 3.03 | -14.00 | 2.01 | -14.00 | -4.02 | 84.62 | -40.76 | 101.03 | 0.6659 | 899.0 | 999999 | |
| 1.04 | 2.51 | 0.69 | 1.67 | -3.92 | 84.23 | -41.15 | 100.77 | 0.6706 | 660.8 | 552.8 | |
| 0.00 | 1.38 | 0.00 | 0.92 | -3.44 | 84.18 | -41.20 | 100.05 | 0.6701 | 617.0 | 553.0 | |
| 0.00 | 3.20 | 0.00 | 2.14 | -4.89 | 84.05 | -41.34 | 102.13 | 0.6755 | 722.0 | 560.8 | |
| 1.38 | 2.77 | 0.92 | 1.85 | -3.71 | 84.05 | -41.34 | 100.42 | 0.6725 | 652.9 | 478.2 | |
| 0.00 | 1.30 | 0.00 | 0.87 | -5.14 | 83.87 | -41.52 | 102.44 | 0.6784 | 485.0 | 359.5 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -5.12 | 83.59 | -41.80 | 102.33 | 0.6819 | 486.0 | 500.0 | |
| 0.00 | 2.51 | 0.00 | 1.69 | -4.77 | 83.45 | -41.93 | 101.78 | 0.6826 | 575.0 | 403.7 | |
| 0.00 | 1.38 | 0.00 | 0.94 | -4.47 | 83.32 | -42.07 | 101.31 | 0.6836 | 657.0 | 572.2 | |
| 0.00 | 0.69 | 0.00 | 0.47 | -4.94 | 82.91 | -42.47 | 101.87 | 0.6897 | -231.0 | -185.8 | |
| 0.00 | 1.04 | 0.00 | 0.72 | -5.13 | 81.67 | -43.72 | 101.78 | 0.7055 | -595.0 | -501.2 | |
| 0.00 | 0.95 | 0.00 | 0.68 | -4.06 | 80.20 | -45.18 | 99.92 | 0.7207 | 538.0 | 392.8 | |
| 0.00 | 0.78 | 0.00 | 0.57 | -6.00 | 79.38 | -46.01 | 102.34 | 0.7347 | -700.0 | -579.6 | |
| 0.00 | 1.12 | 0.00 | 0.82 | -6.26 | 79.18 | -46.21 | 102.62 | 0.7377 | -646.0 | -562.5 | |
| 0.00 | 0.78 | 0.00 | 0.57 | -6.14 | 79.15 | -46.24 | 102.45 | 0.7377 | -659.0 | -544.2 | |
| 0.52 | 1.99 | 0.38 | 1.47 | -6.49 | 78.71 | -46.67 | 102.81 | 0.7436 | -677.8 | -556.5 | |
| 0.00 | 0.78 | 0.00 | 0.58 | -6.29 | 78.56 | -46.82 | 102.50 | 0.7448 | -678.0 | -542.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
