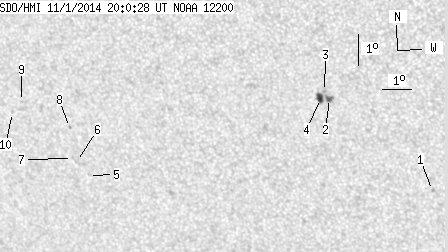

SDO HMI 2014-11-01 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.06 | 17.04 | 3.47 | 10.05 | -16.97 | 99.85 | -24.98 | 131.93 | 0.5411 | 95.9 | 142.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-01 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.69 | -19.16 | 105.80 | -19.03 | 142.03 | 0.5027 | 687.0 | 599.6 | |
| 2.08 | 4.07 | 1.19 | 2.33 | -16.29 | 102.71 | -22.12 | 133.82 | 0.5030 | 1003.7 | 783.6 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -16.07 | 102.57 | -22.26 | 133.31 | 0.5023 | 913.0 | 758.7 | |
| 3.98 | 5.88 | 2.28 | 3.37 | -16.30 | 102.41 | -22.42 | 133.45 | 0.5064 | 830.4 | 567.0 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -19.06 | 93.83 | -31.00 | 128.47 | 0.6241 | -399.0 | -320.3 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -18.62 | 93.48 | -31.35 | 127.59 | 0.6245 | -621.0 | -607.0 | |
| 0.00 | 1.21 | 0.00 | 0.77 | -18.53 | 93.35 | -31.48 | 127.36 | 0.6252 | -486.0 | -441.1 | |
| 0.00 | 1.04 | 0.00 | 0.65 | -17.53 | 93.44 | -31.39 | 126.08 | 0.6168 | -742.0 | -566.8 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -16.77 | 91.82 | -33.01 | 123.74 | 0.6295 | -702.0 | -705.3 | |
| 0.00 | 1.21 | 0.00 | 0.78 | -17.14 | 91.41 | -33.42 | 123.93 | 0.6366 | -638.0 | -508.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
