SDO HMI 2014-11-01 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.29 | 135.64 | 27.06 | 68.93 | 12.63 | 114.99 | -9.84 | 48.60 | 0.2229 | -394.8 | -40.5 | |
|
previous
or next observation for the same group /

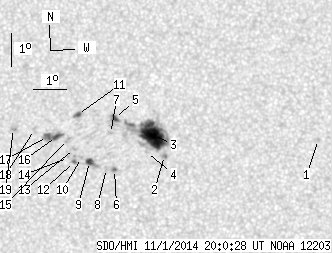

back to the solar disc SDO HMI 2014-11-01 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 0.78 | 12.62 | 120.90 | -3.93 | 24.86 | 0.1599 | -854.0 | -667.1 | |
| 0.00 | 3.11 | 0.00 | 1.57 | 12.11 | 116.19 | -8.64 | 47.15 | 0.2012 | -200.0 | -246.6 | |
| 37.89 | 78.29 | 19.20 | 39.70 | 12.71 | 115.83 | -9.00 | 46.14 | 0.2126 | -1243.9 | -386.2 | |
| 0.00 | 0.52 | 0.00 | 0.26 | 12.20 | 115.64 | -9.20 | 48.58 | 0.2092 | 180.0 | 119.5 | |
| 2.51 | 8.39 | 1.28 | 4.27 | 13.21 | 114.61 | -10.22 | 48.02 | 0.2335 | -879.9 | -206.7 | |
| 0.69 | 2.16 | 0.35 | 1.10 | 11.67 | 114.67 | -10.16 | 53.26 | 0.2166 | -840.5 | -547.8 | |
| 0.00 | 2.25 | 0.00 | 1.14 | 12.75 | 114.50 | -10.33 | 49.82 | 0.2299 | 84.0 | 17.3 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 11.70 | 114.42 | -10.41 | 53.80 | 0.2203 | -76.0 | -98.3 | |
| 3.29 | 7.35 | 1.67 | 3.74 | 11.90 | 113.89 | -10.95 | 54.37 | 0.2296 | 1155.9 | 612.3 | |
| 0.00 | 1.90 | 0.00 | 0.97 | 12.02 | 113.63 | -11.20 | 54.55 | 0.2342 | 966.0 | 642.0 | |
| 1.90 | 3.81 | 0.97 | 1.95 | 13.31 | 113.45 | -11.38 | 50.63 | 0.2495 | -796.7 | -507.6 | |
| 0.78 | 3.20 | 0.40 | 1.63 | 11.90 | 113.42 | -11.41 | 55.47 | 0.2360 | 1039.8 | 788.4 | |
| 0.00 | 1.47 | 0.00 | 0.75 | 12.29 | 113.41 | -11.43 | 54.14 | 0.2399 | 922.0 | 767.6 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 12.02 | 113.23 | -11.60 | 55.49 | 0.2398 | 680.0 | 647.6 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 12.56 | 113.18 | -11.66 | 53.75 | 0.2456 | 858.0 | 754.8 | |
| 3.29 | 12.11 | 1.68 | 6.20 | 12.64 | 112.83 | -12.00 | 54.23 | 0.2512 | 1169.9 | 821.7 | |
| 2.94 | -16.00 | 1.51 | -16.00 | 12.64 | 112.55 | -12.28 | 54.85 | 0.2550 | 969.9 | 999999 | |
| 0.00 | 3.03 | 0.00 | 1.55 | 12.84 | 112.13 | -12.70 | 55.05 | 0.2627 | 845.0 | 590.3 | |
| 0.00 | 2.08 | 0.00 | 1.07 | 12.86 | 111.47 | -13.36 | 56.28 | 0.2720 | 881.0 | 853.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
