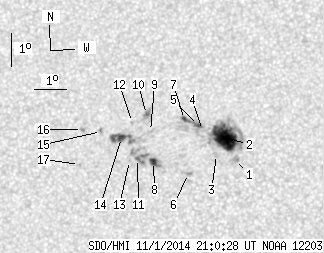

SDO HMI 2014-11-01 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.43 | 168.18 | 26.56 | 85.35 | 12.54 | 114.70 | -9.58 | 48.16 | 0.2186 | -522.1 | 92.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-01 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.50 | 0.00 | 2.27 | 11.99 | 116.26 | -8.02 | 45.50 | 0.1923 | 46.0 | -101.6 | |
| 38.59 | 76.65 | 19.52 | 38.78 | 12.65 | 115.90 | -8.38 | 44.33 | 0.2044 | -1252.0 | -389.6 | |
| 0.00 | 3.11 | 0.00 | 1.57 | 12.14 | 115.67 | -8.61 | 46.94 | 0.2012 | 507.0 | 261.2 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 12.86 | 115.21 | -9.07 | 45.83 | 0.2152 | -593.0 | -325.1 | |
| 1.38 | 13.93 | 0.70 | 7.07 | 13.00 | 115.08 | -9.19 | 45.72 | 0.2185 | -991.4 | -472.9 | |
| 0.00 | 2.86 | 0.00 | 1.44 | 11.56 | 114.83 | -9.45 | 51.73 | 0.2059 | -847.0 | -595.2 | |
| 1.73 | -5.00 | 0.88 | -5.00 | 13.18 | 114.64 | -9.63 | 46.44 | 0.2259 | -892.3 | 999999 | |
| 4.41 | 27.69 | 2.24 | 14.08 | 11.91 | 113.73 | -10.54 | 53.36 | 0.2242 | 1182.2 | 781.6 | |
| 0.00 | 2.16 | 0.00 | 1.10 | 12.81 | 113.60 | -10.67 | 50.53 | 0.2350 | 193.0 | 69.6 | |
| 0.87 | 5.80 | 0.44 | 2.96 | 13.32 | 113.46 | -10.82 | 49.22 | 0.2423 | -661.3 | -419.7 | |
| 1.04 | -8.00 | 0.53 | -8.00 | 11.99 | 113.24 | -11.04 | 54.28 | 0.2318 | 1081.6 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.75 | 13.07 | 113.03 | -11.24 | 51.07 | 0.2453 | -447.0 | -380.6 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 11.93 | 112.99 | -11.29 | 55.08 | 0.2347 | -227.0 | -12.7 | |
| 4.41 | 22.58 | 2.25 | 11.53 | 12.62 | 112.71 | -11.57 | 53.34 | 0.2450 | 1155.3 | 736.4 | |
| 0.00 | 2.16 | 0.00 | 1.11 | 12.79 | 112.08 | -12.20 | 54.17 | 0.2553 | 959.0 | 722.0 | |
| 0.00 | 2.16 | 0.00 | 1.11 | 12.84 | 111.48 | -12.79 | 55.24 | 0.2640 | 1032.0 | 805.6 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 11.79 | 111.44 | -12.84 | 58.81 | 0.2554 | 817.0 | 576.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
