SDO HMI 2014-11-01 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.11 | 56.60 | 11.92 | 47.59 | 5.92 | 69.05 | -54.12 | 85.80 | 0.8098 | 6.4 | -182.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-01 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

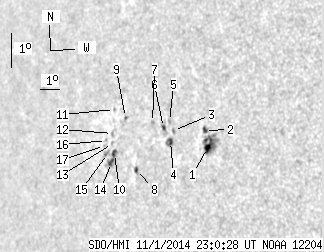

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.98 | 21.03 | 3.18 | 16.75 | 5.95 | 71.29 | -51.88 | 85.82 | 0.7869 | -796.1 | -637.8 | |
| 1.30 | 2.94 | 1.04 | 2.36 | 6.45 | 71.08 | -52.10 | 85.19 | 0.7891 | -572.6 | -429.9 | |
| 0.00 | 1.73 | 0.00 | 1.44 | 6.36 | 69.54 | -53.63 | 85.28 | 0.8052 | -579.0 | -464.5 | |
| 2.08 | 4.59 | 1.73 | 3.83 | 6.02 | 69.44 | -53.74 | 85.70 | 0.8064 | -573.9 | -368.3 | |
| 0.00 | 1.47 | 0.00 | 1.23 | 6.61 | 69.30 | -53.87 | 84.96 | 0.8077 | -657.0 | -494.5 | |
| 0.95 | 3.37 | 0.80 | 2.84 | 6.42 | 69.02 | -54.15 | 85.20 | 0.8106 | -379.4 | -184.2 | |
| 0.00 | 1.56 | 0.00 | 1.33 | 6.53 | 68.43 | -54.74 | 85.05 | 0.8165 | -32.0 | -39.5 | |
| 1.21 | 2.60 | 1.05 | 2.25 | 5.09 | 67.80 | -55.37 | 86.80 | 0.8231 | -286.6 | -255.5 | |
| 0.35 | 1.30 | 0.31 | 1.15 | 6.59 | 66.99 | -56.19 | 84.96 | 0.8307 | 590.5 | 564.5 | |
| 1.82 | 7.70 | 1.63 | 6.91 | 5.49 | 66.56 | -56.61 | 86.27 | 0.8351 | 729.8 | 601.0 | |
| 0.00 | 0.95 | 0.00 | 0.86 | 6.79 | 66.35 | -56.82 | 84.71 | 0.8368 | 399.0 | 343.5 | |
| 0.00 | 1.99 | 0.00 | 1.79 | 6.07 | 66.36 | -56.81 | 85.57 | 0.8368 | 473.0 | 474.0 | |
| 0.00 | 0.95 | 0.00 | 0.86 | 5.78 | 66.41 | -56.76 | 85.92 | 0.8364 | 580.0 | 566.0 | |
| 2.42 | -10.00 | 2.18 | -10.00 | 5.21 | 66.44 | -56.74 | 86.60 | 0.8363 | 682.4 | 999999 | |
| 0.00 | 2.77 | 0.00 | 2.50 | 5.47 | 66.18 | -56.99 | 86.29 | 0.8387 | 492.0 | 421.6 | |
| 0.00 | 0.61 | 0.00 | 0.55 | 5.85 | 66.07 | -57.11 | 85.83 | 0.8397 | 350.0 | 298.6 | |
| 0.00 | 1.04 | 0.00 | 0.94 | 5.69 | 65.98 | -57.19 | 86.01 | 0.8405 | 388.0 | 327.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
