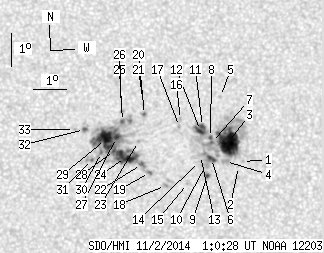

SDO HMI 2014-11-02 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.69 | 273.13 | 50.32 | 137.97 | 12.33 | 114.29 | -7.78 | 42.72 | 0.1948 | -90.3 | 120.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-02 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.61 | 11.87 | 116.71 | -5.36 | 34.68 | 0.1613 | -764.0 | -526.0 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 11.72 | 116.60 | -5.48 | 35.83 | 0.1604 | -732.0 | -518.7 | |
| 39.72 | 104.63 | 19.98 | 52.65 | 12.47 | 116.27 | -5.80 | 34.70 | 0.1740 | -1267.5 | -410.2 | |
| 0.00 | 3.81 | 0.00 | 1.91 | 11.87 | 116.20 | -5.88 | 37.19 | 0.1665 | 108.0 | 120.9 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 13.82 | 116.00 | -6.07 | 31.79 | 0.1959 | -774.0 | -637.6 | |
| 3.46 | -3.00 | 1.74 | -3.00 | 11.96 | 115.77 | -6.31 | 38.81 | 0.1722 | -1079.1 | 999999 | |
| 0.69 | -3.00 | 0.35 | -3.00 | 12.44 | 115.75 | -6.32 | 37.13 | 0.1788 | -895.0 | 999999 | |
| 0.95 | -3.00 | 0.48 | -3.00 | 12.59 | 115.72 | -6.35 | 36.76 | 0.1812 | -918.3 | 999999 | |
| 1.38 | 3.12 | 0.70 | 1.57 | 11.45 | 115.65 | -6.42 | 41.28 | 0.1668 | -787.9 | -353.6 | |
| 0.00 | 3.63 | 0.00 | 1.83 | 11.75 | 115.59 | -6.48 | 40.39 | 0.1714 | 15.0 | 35.1 | |
| 2.34 | -3.00 | 1.18 | -3.00 | 12.92 | 115.47 | -6.60 | 36.73 | 0.1883 | -908.4 | 999999 | |
| 5.02 | -3.00 | 2.53 | -3.00 | 12.80 | 115.41 | -6.66 | 37.37 | 0.1873 | -962.5 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 12.04 | 115.43 | -6.64 | 39.94 | 0.1771 | 30.0 | -11.7 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 11.86 | 115.40 | -6.67 | 40.72 | 0.1750 | 94.0 | 70.9 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 11.20 | 115.05 | -7.02 | 44.83 | 0.1709 | 488.0 | 278.6 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 13.12 | 114.78 | -7.29 | 38.76 | 0.1982 | -963.0 | -703.1 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 12.91 | 114.76 | -7.31 | 39.55 | 0.1957 | -369.0 | -320.4 | |
| 0.00 | 1.90 | 0.00 | 0.96 | 11.14 | 114.38 | -7.69 | 47.68 | 0.1785 | -468.0 | -324.0 | |
| 0.69 | 133.28 | 0.35 | 67.54 | 11.52 | 113.88 | -8.19 | 47.86 | 0.1892 | 1004.8 | 465.9 | |
| 0.78 | 1.99 | 0.39 | 1.01 | 13.26 | 113.67 | -8.40 | 42.26 | 0.2124 | -605.3 | -398.6 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 13.56 | 113.63 | -8.44 | 41.44 | 0.2166 | -634.0 | -354.6 | |
| 1.21 | -19.00 | 0.61 | -19.00 | 11.76 | 113.63 | -8.45 | 47.77 | 0.1951 | 1159.8 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 12.45 | 113.51 | -8.56 | 45.57 | 0.2045 | 808.0 | 509.5 | |
| 16.44 | -19.00 | 8.32 | -19.00 | 11.96 | 113.13 | -8.94 | 48.58 | 0.2037 | 1221.0 | 999999 | |
| 1.13 | -19.00 | 0.57 | -19.00 | 13.05 | 113.00 | -9.07 | 45.14 | 0.2177 | -470.2 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 13.35 | 112.96 | -9.11 | 44.28 | 0.2218 | -615.0 | -451.6 | |
| 2.86 | -19.00 | 1.45 | -19.00 | 12.56 | 112.83 | -9.24 | 47.32 | 0.2142 | 1163.5 | 999999 | |
| 1.38 | -19.00 | 0.70 | -19.00 | 12.17 | 112.78 | -9.29 | 48.87 | 0.2105 | 1288.1 | 999999 | |
| 19.56 | -19.00 | 9.92 | -19.00 | 12.50 | 112.49 | -9.58 | 48.54 | 0.2178 | 1248.8 | 999999 | |
| 0.78 | -19.00 | 0.39 | -19.00 | 12.11 | 112.38 | -9.69 | 50.26 | 0.2150 | 976.9 | 999999 | |
| 0.35 | 3.29 | 0.18 | 1.67 | 11.89 | 112.08 | -9.99 | 51.89 | 0.2167 | 1040.5 | 785.7 | |
| 0.95 | 3.03 | 0.48 | 1.54 | 12.79 | 111.83 | -10.24 | 49.37 | 0.2295 | 1004.5 | 817.5 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 12.79 | 111.52 | -10.55 | 50.20 | 0.2335 | 909.0 | 706.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
