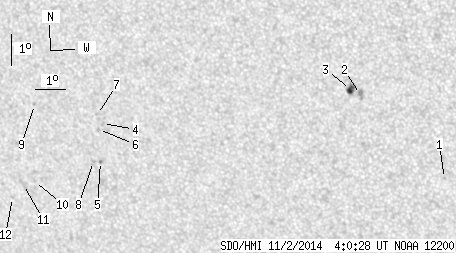

SDO HMI 2014-11-02 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.55 | 25.55 | 1.97 | 14.99 | -17.80 | 96.84 | -23.58 | 134.93 | 0.5332 | -206.5 | -83.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-02 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.48 | -19.02 | 105.49 | -14.94 | 148.21 | 0.4646 | 747.0 | 621.7 | |
| 0.00 | 4.50 | 0.00 | 2.50 | -16.38 | 103.00 | -17.42 | 140.59 | 0.4544 | 967.0 | 811.8 | |
| 3.55 | 5.97 | 1.97 | 3.32 | -16.23 | 102.69 | -17.73 | 139.87 | 0.4557 | 984.7 | 820.8 | |
| 0.00 | 1.47 | 0.00 | 0.88 | -17.55 | 94.19 | -26.23 | 130.87 | 0.5594 | -802.0 | -668.2 | |
| 0.00 | 1.04 | 0.00 | 0.63 | -18.78 | 93.92 | -26.50 | 132.29 | 0.5733 | -782.0 | -734.8 | |
| 0.00 | 1.30 | 0.00 | 0.78 | -17.75 | 94.02 | -26.40 | 130.97 | 0.5630 | -725.0 | -559.9 | |
| 0.00 | 1.30 | 0.00 | 0.77 | -17.27 | 94.07 | -26.36 | 130.33 | 0.5583 | -645.0 | -624.9 | |
| 0.00 | 1.21 | 0.00 | 0.73 | -18.79 | 93.67 | -26.75 | 132.05 | 0.5760 | -721.0 | -590.6 | |
| 0.00 | 1.13 | 0.00 | 0.68 | -17.02 | 91.89 | -28.53 | 127.83 | 0.5805 | -734.0 | -529.5 | |
| 0.00 | 0.78 | 0.00 | 0.48 | -19.52 | 91.43 | -28.99 | 130.83 | 0.6060 | -678.0 | -548.6 | |
| 0.00 | 4.85 | 0.00 | 3.03 | -19.63 | 91.01 | -29.41 | 130.59 | 0.6114 | -589.0 | -372.6 | |
| 0.00 | 1.13 | 0.00 | 0.71 | -20.07 | 90.52 | -29.91 | 130.72 | 0.6201 | -656.0 | -512.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
