SDO HMI 2014-11-02 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.88 | 0.00 | 5.87 | -19.51 | 77.69 | -42.74 | 121.08 | 0.7480 | 586.0 | 533.2 | |
|
previous
or next observation for the same group /

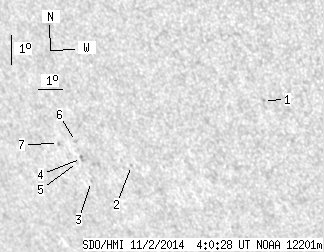

back to the solar disc SDO HMI 2014-11-02 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.74 | -17.57 | 84.66 | -35.76 | 122.78 | 0.6651 | 798.0 | 593.5 | |
| 0.00 | 0.95 | 0.00 | 0.70 | -19.95 | 78.66 | -41.76 | 122.10 | 0.7413 | 550.0 | 485.6 | |
| 0.00 | 0.95 | 0.00 | 0.73 | -20.58 | 76.71 | -43.71 | 121.79 | 0.7634 | 502.0 | 371.4 | |
| 0.00 | 2.16 | 0.00 | 1.65 | -19.84 | 76.54 | -43.89 | 120.82 | 0.7617 | 751.0 | 655.5 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -19.98 | 76.31 | -44.11 | 120.87 | 0.7645 | 404.0 | 443.3 | |
| 0.00 | 1.30 | 0.00 | 0.98 | -19.29 | 76.46 | -43.96 | 120.13 | 0.7598 | 611.0 | 546.9 | |
| 0.00 | 1.13 | 0.00 | 0.87 | -19.40 | 75.67 | -44.75 | 119.86 | 0.7680 | 486.0 | 428.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
