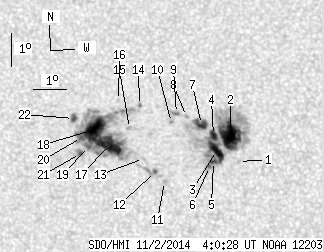

SDO HMI 2014-11-02 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 142.14 | 414.49 | 71.51 | 208.54 | 12.25 | 114.53 | -5.90 | 34.96 | 0.1740 | -37.3 | 11.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-02 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 0.78 | 11.56 | 116.81 | -3.62 | 25.98 | 0.1417 | -555.0 | -484.3 | |
| 39.65 | 208.19 | 19.88 | 104.42 | 12.34 | 116.55 | -3.87 | 25.17 | 0.1558 | -1331.6 | -299.6 | |
| 14.11 | -2.00 | 7.07 | -2.00 | 11.89 | 116.13 | -4.29 | 28.92 | 0.1521 | -1202.5 | 999999 | |
| 5.63 | -2.00 | 2.82 | -2.00 | 12.34 | 116.04 | -4.39 | 28.05 | 0.1597 | -1159.9 | 999999 | |
| 2.60 | -2.00 | 1.30 | -2.00 | 11.56 | 116.05 | -4.38 | 30.52 | 0.1479 | -1087.7 | 999999 | |
| 0.87 | -2.00 | 0.43 | -2.00 | 11.41 | 115.93 | -4.50 | 31.74 | 0.1468 | -977.4 | 999999 | |
| 7.96 | -2.00 | 4.00 | -2.00 | 12.67 | 115.66 | -4.76 | 29.01 | 0.1678 | -998.8 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 12.90 | 115.20 | -5.22 | 30.58 | 0.1753 | -539.0 | -356.9 | |
| 0.69 | 3.55 | 0.35 | 1.79 | 12.99 | 114.89 | -5.53 | 31.76 | 0.1793 | -974.0 | -721.9 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 12.72 | 114.74 | -5.68 | 33.28 | 0.1768 | -621.0 | -379.2 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 10.95 | 114.57 | -5.86 | 40.71 | 0.1544 | -525.0 | -395.6 | |
| 0.78 | 7.79 | 0.39 | 3.91 | 11.25 | 114.29 | -6.14 | 40.76 | 0.1614 | 1007.2 | 668.6 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 11.63 | 113.91 | -6.51 | 40.86 | 0.1706 | 834.0 | 575.6 | |
| 0.52 | 1.56 | 0.26 | 0.79 | 13.23 | 113.75 | -6.67 | 35.96 | 0.1936 | -823.7 | -551.7 | |
| 0.00 | 2.25 | 0.00 | 1.13 | 12.53 | 113.46 | -6.96 | 39.42 | 0.1873 | 796.0 | 654.2 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 13.37 | 113.10 | -7.33 | 38.04 | 0.2022 | -639.0 | -455.4 | |
| 27.87 | 177.80 | 14.05 | 89.77 | 12.05 | 112.86 | -7.56 | 43.49 | 0.1879 | 1322.8 | 366.3 | |
| 32.89 | -17.00 | 16.62 | -17.00 | 12.49 | 112.39 | -8.04 | 43.57 | 0.1990 | 1282.1 | 999999 | |
| 1.73 | -17.00 | 0.87 | -17.00 | 11.98 | 112.22 | -8.21 | 46.04 | 0.1949 | 969.7 | 999999 | |
| 2.42 | -17.00 | 1.23 | -17.00 | 12.25 | 111.99 | -8.43 | 45.79 | 0.2008 | 934.0 | 999999 | |
| 1.56 | -17.00 | 0.79 | -17.00 | 11.77 | 111.98 | -8.45 | 47.65 | 0.1955 | 1059.2 | 999999 | |
| 2.86 | 5.02 | 1.45 | 2.54 | 12.82 | 111.73 | -8.70 | 44.65 | 0.2107 | 999.7 | 780.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
