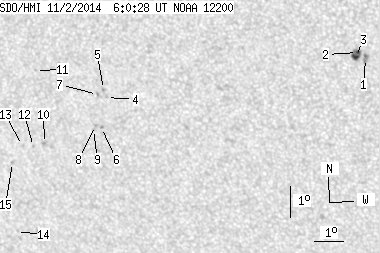

SDO HMI 2014-11-02 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.98 | 22.69 | 2.20 | 13.10 | -17.55 | 97.70 | -21.63 | 136.99 | 0.5100 | -345.9 | -40.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-02 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.24 | 0.00 | 2.34 | -16.34 | 103.05 | -16.28 | 142.38 | 0.4426 | 1043.0 | 852.8 | |
| 1.21 | 7.44 | 0.67 | 4.11 | -16.15 | 102.80 | -16.53 | 141.70 | 0.4427 | 1083.1 | 821.8 | |
| 2.77 | -2.00 | 1.53 | -2.00 | -16.28 | 102.73 | -16.60 | 141.76 | 0.4450 | 927.6 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -17.82 | 94.24 | -25.09 | 132.45 | 0.5493 | -706.0 | -635.5 | |
| 0.00 | 1.47 | 0.00 | 0.87 | -17.56 | 94.17 | -25.16 | 132.02 | 0.5476 | -766.0 | -644.4 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -18.79 | 93.91 | -25.42 | 133.45 | 0.5619 | -859.0 | -725.2 | |
| 0.00 | 1.04 | 0.00 | 0.62 | -17.73 | 93.94 | -25.39 | 132.00 | 0.5517 | -736.0 | -576.7 | |
| 0.00 | 1.21 | 0.00 | 0.73 | -18.73 | 93.71 | -25.62 | 133.15 | 0.5634 | -781.0 | -633.6 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -18.87 | 93.62 | -25.71 | 133.23 | 0.5656 | -598.0 | -552.5 | |
| 0.00 | 1.21 | 0.00 | 0.74 | -19.38 | 91.80 | -27.53 | 132.04 | 0.5894 | -793.0 | -649.6 | |
| 0.00 | 0.61 | 0.00 | 0.36 | -17.03 | 91.89 | -27.44 | 128.88 | 0.5682 | -769.0 | -570.6 | |
| 0.00 | 0.69 | 0.00 | 0.43 | -19.49 | 91.39 | -27.94 | 131.79 | 0.5947 | -746.0 | -662.8 | |
| 0.00 | 0.95 | 0.00 | 0.59 | -19.48 | 91.00 | -28.33 | 131.38 | 0.5986 | -626.0 | -532.2 | |
| 0.00 | 0.35 | 0.00 | 0.22 | -22.33 | 90.17 | -29.16 | 134.25 | 0.6314 | -443.0 | -501.8 | |
| 0.00 | 1.13 | 0.00 | 0.70 | -20.05 | 90.52 | -28.81 | 131.68 | 0.6084 | -623.0 | -437.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
