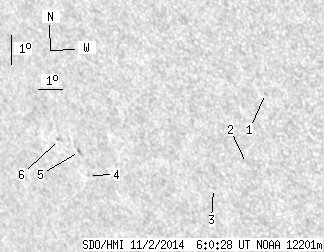

SDO HMI 2014-11-02 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.10 | 0.00 | 5.18 | -19.74 | 77.92 | -41.41 | 122.11 | 0.7361 | 581.5 | 508.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-02 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.45 | -17.57 | 84.72 | -34.61 | 123.57 | 0.6523 | 705.0 | 668.1 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -19.88 | 83.42 | -35.91 | 125.66 | 0.6812 | 459.0 | 464.0 | |
| 0.00 | 0.78 | 0.00 | 0.54 | -20.77 | 81.87 | -37.47 | 125.71 | 0.7028 | 572.0 | 453.0 | |
| 0.00 | 1.13 | 0.00 | 0.84 | -20.60 | 76.71 | -42.62 | 122.39 | 0.7530 | 439.0 | 395.0 | |
| 0.00 | 1.90 | 0.00 | 1.42 | -19.82 | 76.58 | -42.75 | 121.39 | 0.7503 | 731.0 | 621.6 | |
| 0.00 | 2.25 | 0.00 | 1.70 | -19.47 | 75.83 | -43.50 | 120.57 | 0.7560 | 583.0 | 450.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
