SDO HMI 2014-11-02 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 151.30 | 452.48 | 75.96 | 227.24 | 12.16 | 114.61 | -4.72 | 29.25 | 0.1625 | -90.0 | 32.2 | |
|
previous
or next observation for the same group /

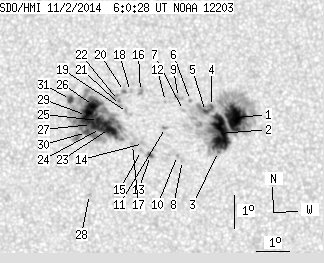

back to the solar disc SDO HMI 2014-11-02 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.80 | 232.43 | 17.43 | 116.41 | 12.33 | 116.71 | -2.62 | 17.65 | 0.1479 | -1370.0 | -339.7 | |
| 44.67 | -1.00 | 22.35 | -1.00 | 11.85 | 116.23 | -3.10 | 21.86 | 0.1429 | -1182.7 | 999999 | |
| 0.43 | -1.00 | 0.22 | -1.00 | 11.31 | 116.20 | -3.13 | 23.56 | 0.1344 | -839.6 | 999999 | |
| 0.69 | -1.00 | 0.35 | -1.00 | 12.66 | 115.98 | -3.35 | 21.36 | 0.1575 | -925.0 | 999999 | |
| 1.90 | -1.00 | 0.95 | -1.00 | 12.51 | 115.80 | -3.54 | 22.78 | 0.1563 | -738.7 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 12.83 | 115.33 | -4.00 | 24.51 | 0.1647 | -626.0 | -362.3 | |
| 0.00 | 1.47 | 0.00 | 0.74 | 12.53 | 115.12 | -4.21 | 26.46 | 0.1615 | 703.0 | 436.6 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 11.03 | 115.11 | -4.22 | 31.46 | 0.1390 | 377.0 | 356.5 | |
| 0.00 | 3.55 | 0.00 | 1.78 | 12.92 | 114.96 | -4.37 | 26.22 | 0.1688 | -1079.0 | -782.2 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 11.18 | 114.96 | -4.37 | 31.80 | 0.1425 | 768.0 | 656.1 | |
| 0.00 | 2.08 | 0.00 | 1.04 | 12.02 | 114.58 | -4.75 | 30.93 | 0.1583 | 899.0 | 685.8 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 12.80 | 114.57 | -4.76 | 28.58 | 0.1700 | -747.0 | -567.1 | |
| 1.47 | 3.12 | 0.74 | 1.56 | 11.18 | 114.14 | -5.19 | 36.36 | 0.1505 | 1048.3 | 837.2 | |
| 0.00 | 2.42 | 0.00 | 1.22 | 11.54 | 113.92 | -5.41 | 36.08 | 0.1577 | 752.0 | 510.5 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 11.33 | 113.86 | -5.47 | 37.18 | 0.1554 | 816.0 | 519.2 | |
| 0.00 | 4.24 | 0.00 | 2.14 | 13.10 | 113.80 | -5.53 | 31.41 | 0.1811 | -869.0 | -708.2 | |
| 0.00 | 2.25 | 0.00 | 1.13 | 11.50 | 113.58 | -5.75 | 37.84 | 0.1607 | 667.0 | 448.2 | |
| 0.00 | 2.08 | 0.00 | 1.05 | 13.10 | 113.49 | -5.84 | 32.80 | 0.1839 | -740.0 | -569.5 | |
| 0.00 | 4.07 | 0.00 | 2.05 | 12.46 | 113.41 | -5.92 | 35.16 | 0.1757 | 758.0 | 702.6 | |
| 0.52 | 8.40 | 0.26 | 4.23 | 13.09 | 113.31 | -6.03 | 33.61 | 0.1856 | -781.0 | -204.1 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 12.67 | 113.19 | -6.14 | 35.44 | 0.1807 | 1121.0 | 763.3 | |
| 0.35 | -20.00 | 0.17 | -20.00 | 12.82 | 113.13 | -6.20 | 35.23 | 0.1835 | 793.0 | 999999 | |
| 15.58 | 176.16 | 7.84 | 88.76 | 11.98 | 112.87 | -6.46 | 39.26 | 0.1747 | 1371.5 | 534.1 | |
| 2.94 | -23.00 | 1.48 | -23.00 | 11.98 | 112.60 | -6.74 | 40.43 | 0.1777 | 1126.8 | 999999 | |
| 7.44 | -23.00 | 3.75 | -23.00 | 12.22 | 112.53 | -6.80 | 39.83 | 0.1816 | 1425.3 | 999999 | |
| 12.38 | -23.00 | 6.24 | -23.00 | 12.67 | 112.36 | -6.97 | 38.91 | 0.1893 | 1128.1 | 999999 | |
| 7.70 | -23.00 | 3.88 | -23.00 | 12.10 | 112.32 | -7.01 | 41.13 | 0.1824 | 1318.4 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 10.00 | 112.30 | -7.03 | 50.19 | 0.1576 | -859.0 | -589.4 | |
| 14.46 | -23.00 | 7.29 | -23.00 | 12.36 | 112.16 | -7.17 | 40.78 | 0.1876 | 1303.2 | 999999 | |
| 3.20 | -23.00 | 1.61 | -23.00 | 11.85 | 112.17 | -7.16 | 42.62 | 0.1810 | 814.8 | 999999 | |
| 2.77 | -23.00 | 1.40 | -23.00 | 12.84 | 111.65 | -7.68 | 41.03 | 0.1994 | 959.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
