SDO HMI 2014-11-02 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.73 | 131.51 | 23.65 | 78.70 | -4.58 | 85.20 | -33.04 | 104.60 | 0.5638 | 341.1 | 296.5 | |
|
previous
or next observation for the same group /

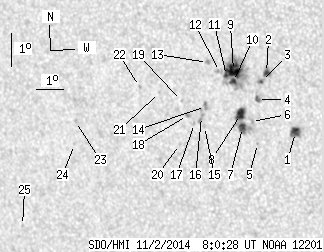

back to the solar disc SDO HMI 2014-11-02 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.80 | 8.92 | 3.40 | 5.23 | -5.66 | 87.41 | -30.82 | 107.61 | 0.5371 | 909.2 | 647.0 | |
| 2.51 | 5.37 | 1.48 | 3.16 | -3.89 | 86.49 | -31.75 | 103.98 | 0.5431 | 828.9 | 581.0 | |
| 0.78 | 3.03 | 0.46 | 1.79 | -4.17 | 86.30 | -31.93 | 104.39 | 0.5468 | -631.3 | -352.3 | |
| 0.00 | 3.20 | 0.00 | 1.90 | -4.72 | 86.14 | -32.10 | 105.28 | 0.5512 | -978.0 | -797.6 | |
| 0.00 | 0.61 | 0.00 | 0.36 | -6.05 | 86.05 | -32.18 | 107.55 | 0.5577 | -625.0 | -544.4 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -5.39 | 85.88 | -32.35 | 106.33 | 0.5574 | -475.0 | -161.4 | |
| 4.85 | 22.76 | 2.90 | 13.61 | -5.59 | 85.55 | -32.69 | 106.50 | 0.5627 | 928.9 | 294.4 | |
| 7.36 | -7.00 | 4.40 | -7.00 | -5.19 | 85.51 | -32.73 | 105.81 | 0.5619 | -799.6 | 999999 | |
| 14.02 | 60.85 | 8.37 | 36.28 | -3.88 | 85.33 | -32.91 | 103.44 | 0.5596 | 1103.6 | 374.2 | |
| 2.68 | -9.00 | 1.60 | -9.00 | -4.21 | 85.31 | -32.93 | 104.01 | 0.5609 | 647.9 | 999999 | |
| 1.73 | -9.00 | 1.04 | -9.00 | -4.04 | 85.07 | -33.17 | 103.62 | 0.5637 | 621.3 | 999999 | |
| 0.00 | 3.55 | 0.00 | 2.13 | -3.93 | 84.82 | -33.41 | 103.32 | 0.5668 | 566.0 | 467.2 | |
| 0.00 | 2.08 | 0.00 | 1.25 | -3.67 | 84.41 | -33.83 | 102.72 | 0.5718 | 826.0 | 633.8 | |
| 0.00 | 3.46 | 0.00 | 2.10 | -5.00 | 84.26 | -33.98 | 104.91 | 0.5783 | 930.0 | 681.5 | |
| 0.00 | 1.47 | 0.00 | 0.89 | -5.61 | 84.19 | -34.05 | 105.89 | 0.5816 | -146.0 | -137.6 | |
| 0.00 | 5.37 | 0.00 | 3.26 | -5.31 | 84.10 | -34.14 | 105.36 | 0.5817 | 770.0 | 593.9 | |
| 0.00 | 1.21 | 0.00 | 0.74 | -5.53 | 83.83 | -34.41 | 105.61 | 0.5862 | 560.0 | 442.7 | |
| 0.00 | 1.82 | 0.00 | 1.11 | -5.30 | 83.59 | -34.65 | 105.12 | 0.5886 | 590.0 | 515.0 | |
| 0.00 | 1.04 | 0.00 | 0.64 | -4.86 | 83.40 | -34.84 | 104.31 | 0.5896 | 594.0 | 460.3 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -6.19 | 83.24 | -35.00 | 106.42 | 0.5968 | 581.0 | 407.1 | |
| 0.00 | 0.78 | 0.00 | 0.48 | -4.65 | 82.61 | -35.63 | 103.65 | 0.5998 | 341.0 | 317.2 | |
| 0.00 | 1.30 | 0.00 | 0.81 | -4.50 | 81.88 | -36.36 | 103.13 | 0.6092 | -780.0 | -570.2 | |
| 0.00 | 1.13 | 0.00 | 0.73 | -5.67 | 79.37 | -38.86 | 104.03 | 0.6459 | -818.0 | -682.0 | |
| 0.00 | 0.61 | 0.00 | 0.39 | -6.37 | 79.27 | -38.96 | 105.05 | 0.6495 | -630.0 | -549.3 | |
| 0.00 | 0.87 | 0.00 | 0.59 | -8.94 | 76.93 | -41.31 | 107.86 | 0.6875 | -591.0 | -467.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
