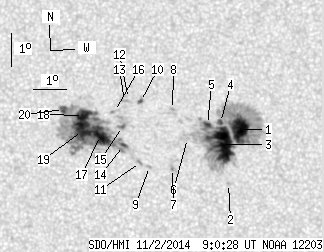

SDO HMI 2014-11-02 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 165.74 | 467.03 | 83.05 | 234.05 | 12.14 | 114.69 | -3.00 | 19.22 | 0.1507 | -121.7 | 42.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-02 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.90 | 253.77 | 15.46 | 126.93 | 12.28 | 116.90 | -0.79 | 5.50 | 0.1410 | -1343.1 | -370.0 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 10.66 | 116.57 | -1.12 | 9.75 | 0.1138 | -923.0 | -728.5 | |
| 55.83 | -1.00 | 27.90 | -1.00 | 11.83 | 116.36 | -1.34 | 9.81 | 0.1345 | -1220.1 | 999999 | |
| 2.34 | -1.00 | 1.17 | -1.00 | 12.49 | 116.33 | -1.37 | 9.24 | 0.1459 | -874.5 | 999999 | |
| 2.94 | -1.00 | 1.47 | -1.00 | 12.43 | 115.93 | -1.76 | 11.93 | 0.1461 | -577.6 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 12.01 | 115.32 | -2.37 | 16.67 | 0.1416 | -213.0 | -228.9 | |
| 0.00 | 2.77 | 0.00 | 1.38 | 11.11 | 114.87 | -2.82 | 21.99 | 0.1295 | 646.0 | 466.9 | |
| 0.00 | 1.47 | 0.00 | 0.74 | 12.88 | 114.86 | -2.83 | 17.81 | 0.1584 | -157.0 | -281.7 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 11.17 | 114.18 | -3.52 | 26.53 | 0.1354 | 749.0 | 543.9 | |
| 1.21 | 2.94 | 0.61 | 1.48 | 13.12 | 113.88 | -3.82 | 22.79 | 0.1681 | -827.6 | -667.5 | |
| 0.00 | 2.42 | 0.00 | 1.21 | 11.28 | 113.90 | -3.79 | 27.88 | 0.1394 | 731.0 | 614.2 | |
| 0.00 | 0.43 | 0.00 | 0.22 | 13.20 | 113.51 | -4.18 | 24.51 | 0.1721 | -194.0 | -291.2 | |
| 0.00 | 3.29 | 0.00 | 1.65 | 13.14 | 113.39 | -4.31 | 25.28 | 0.1720 | -858.0 | -555.6 | |
| 1.90 | 185.22 | 0.95 | 93.06 | 11.79 | 113.38 | -4.32 | 29.27 | 0.1514 | 890.7 | 580.3 | |
| 0.69 | 8.14 | 0.35 | 4.08 | 12.36 | 113.34 | -4.36 | 27.69 | 0.1603 | 1094.1 | 768.1 | |
| 0.00 | 2.51 | 0.00 | 1.26 | 12.81 | 113.09 | -4.61 | 27.71 | 0.1692 | 861.0 | 634.6 | |
| 23.97 | -14.00 | 12.03 | -14.00 | 12.09 | 112.67 | -5.02 | 32.06 | 0.1620 | 1282.4 | 999999 | |
| 13.33 | -14.00 | 6.71 | -14.00 | 12.69 | 112.14 | -5.55 | 32.70 | 0.1756 | 1077.2 | 999999 | |
| 28.99 | -14.00 | 14.57 | -14.00 | 12.24 | 112.12 | -5.58 | 34.28 | 0.1693 | 1274.6 | 999999 | |
| 3.64 | -14.00 | 1.83 | -14.00 | 12.86 | 111.52 | -6.17 | 34.91 | 0.1840 | 912.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
