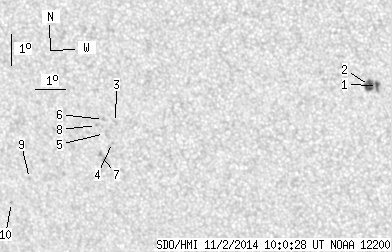

SDO HMI 2014-11-02 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.01 | 26.93 | 3.83 | 15.20 | -17.33 | 98.31 | -18.83 | 140.54 | 0.4797 | -153.3 | -130.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-02 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.56 | 14.02 | 0.85 | 7.65 | -16.22 | 103.19 | -13.96 | 146.32 | 0.4194 | 1071.6 | 733.7 | |
| 5.45 | -1.00 | 2.98 | -1.00 | -16.23 | 102.93 | -14.21 | 145.85 | 0.4218 | 970.3 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.05 | -17.60 | 94.45 | -22.70 | 134.92 | 0.5214 | -758.0 | -639.1 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -18.25 | 94.26 | -22.89 | 135.59 | 0.5299 | -740.0 | -559.6 | |
| 0.00 | 0.52 | 0.00 | 0.30 | -17.97 | 94.03 | -23.12 | 134.92 | 0.5295 | -515.0 | -602.7 | |
| 0.00 | 1.56 | 0.00 | 0.90 | -17.52 | 94.06 | -23.09 | 134.31 | 0.5248 | -808.0 | -519.6 | |
| 0.00 | 5.54 | 0.00 | 3.25 | -18.71 | 93.85 | -23.29 | 135.74 | 0.5388 | -723.0 | -555.3 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -17.72 | 93.79 | -23.36 | 134.28 | 0.5296 | -805.0 | -657.0 | |
| 0.00 | 1.04 | 0.00 | 0.63 | -19.51 | 91.19 | -25.95 | 133.81 | 0.5739 | -686.0 | -542.2 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -20.32 | 90.41 | -26.74 | 134.06 | 0.5893 | -581.0 | -494.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
