SDO HMI 2014-11-02 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 168.23 | 506.44 | 84.26 | 253.68 | 12.12 | 114.75 | -2.40 | 15.44 | 0.1476 | -126.5 | 25.8 | |
|
previous
or next observation for the same group /

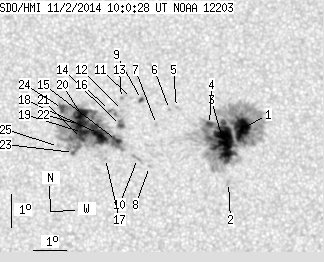

back to the solar disc SDO HMI 2014-11-02 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.48 | 282.47 | 13.25 | 141.26 | 12.27 | 116.97 | -0.18 | 1.27 | 0.1403 | -1371.5 | -357.0 | |
| 0.00 | 2.16 | 0.00 | 1.08 | 10.65 | 116.57 | -0.58 | 5.05 | 0.1126 | -925.0 | -742.3 | |
| 62.48 | -1.00 | 31.23 | -1.00 | 11.85 | 116.42 | -0.73 | 5.37 | 0.1336 | -1222.6 | 999999 | |
| 3.63 | -1.00 | 1.82 | -1.00 | 12.39 | 115.99 | -1.16 | 7.91 | 0.1438 | -559.5 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.43 | 12.90 | 114.98 | -2.16 | 13.74 | 0.1557 | -272.0 | -274.1 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 12.84 | 114.77 | -2.38 | 15.13 | 0.1556 | -650.0 | -455.9 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 12.39 | 114.38 | -2.77 | 18.41 | 0.1501 | 752.0 | 398.0 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 11.13 | 114.18 | -2.97 | 22.97 | 0.1309 | 665.0 | 438.0 | |
| 1.30 | 2.51 | 0.65 | 1.26 | 13.14 | 113.91 | -3.24 | 19.56 | 0.1650 | -868.5 | -709.9 | |
| 0.00 | 3.98 | 0.00 | 1.99 | 11.37 | 113.81 | -3.34 | 24.70 | 0.1373 | 836.0 | 546.3 | |
| 0.00 | 0.87 | 0.00 | 0.43 | 13.17 | 113.60 | -3.54 | 21.18 | 0.1673 | -220.0 | -336.5 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 12.81 | 113.33 | -3.81 | 23.51 | 0.1633 | 485.0 | 300.3 | |
| 0.00 | 1.47 | 0.00 | 0.74 | 13.17 | 113.30 | -3.85 | 22.82 | 0.1693 | -787.0 | -626.5 | |
| 1.90 | 5.37 | 0.95 | 2.69 | 12.36 | 113.28 | -3.87 | 25.00 | 0.1566 | 1067.2 | 720.0 | |
| 3.98 | 193.85 | 1.99 | 97.33 | 11.91 | 113.16 | -3.98 | 26.98 | 0.1505 | 1122.6 | 576.2 | |
| 0.35 | 5.71 | 0.17 | 2.87 | 12.81 | 112.94 | -4.21 | 25.65 | 0.1661 | 835.8 | 729.5 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 11.37 | 112.84 | -4.31 | 30.69 | 0.1451 | -563.0 | -396.3 | |
| 24.23 | -15.00 | 12.15 | -15.00 | 12.11 | 112.61 | -4.54 | 29.41 | 0.1582 | 1288.3 | 999999 | |
| 9.00 | -15.00 | 4.52 | -15.00 | 12.14 | 112.12 | -5.02 | 31.88 | 0.1629 | 1358.7 | 999999 | |
| 14.71 | -15.00 | 7.40 | -15.00 | 12.68 | 112.08 | -5.06 | 30.36 | 0.1712 | 1064.4 | 999999 | |
| 3.81 | -15.00 | 1.91 | -15.00 | 11.96 | 112.10 | -5.05 | 32.63 | 0.1605 | 1151.3 | 999999 | |
| 12.03 | -15.00 | 6.04 | -15.00 | 12.38 | 112.03 | -5.12 | 31.58 | 0.1672 | 1277.2 | 999999 | |
| 1.04 | -15.00 | 0.52 | -15.00 | 11.54 | 111.86 | -5.29 | 35.35 | 0.1568 | 875.9 | 999999 | |
| 3.29 | -15.00 | 1.66 | -15.00 | 12.86 | 111.50 | -5.65 | 32.59 | 0.1790 | 902.5 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 11.72 | 111.40 | -5.75 | 36.94 | 0.1639 | 679.0 | 557.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
