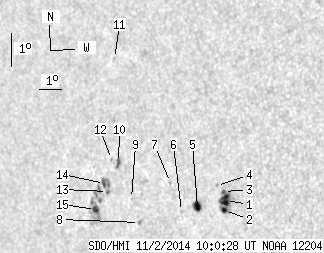

SDO HMI 2014-11-02 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.45 | 76.85 | 17.14 | 57.59 | 5.79 | 68.39 | -48.75 | 86.00 | 0.7514 | -199.1 | 123.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-02 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.88 | 22.76 | 5.53 | 15.99 | 5.93 | 71.81 | -45.33 | 85.85 | 0.7116 | -836.6 | -612.7 | |
| 2.25 | -1.00 | 1.58 | -1.00 | 5.63 | 71.80 | -45.35 | 86.27 | 0.7118 | -709.9 | 999999 | |
| 0.69 | -1.00 | 0.49 | -1.00 | 6.20 | 71.70 | -45.45 | 85.48 | 0.7130 | -636.9 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.86 | 6.36 | 71.38 | -45.76 | 85.25 | 0.7169 | -433.0 | -319.6 | |
| 5.19 | 7.62 | 3.73 | 5.47 | 5.69 | 70.63 | -46.52 | 86.18 | 0.7259 | -613.9 | -404.2 | |
| 0.00 | 0.87 | 0.00 | 0.63 | 5.51 | 69.95 | -47.20 | 86.43 | 0.7341 | -275.0 | -229.9 | |
| 0.00 | 1.04 | 0.00 | 0.76 | 6.34 | 69.36 | -47.78 | 85.29 | 0.7409 | -422.0 | -379.7 | |
| 0.00 | 1.99 | 0.00 | 1.50 | 5.08 | 68.10 | -49.05 | 86.96 | 0.7557 | -651.0 | -496.5 | |
| 0.00 | 0.78 | 0.00 | 0.59 | 5.77 | 67.66 | -49.49 | 86.04 | 0.7606 | 562.0 | 492.2 | |
| 2.08 | 3.81 | 1.60 | 2.94 | 6.81 | 66.92 | -50.23 | 84.67 | 0.7688 | 777.5 | 653.2 | |
| 0.00 | 0.78 | 0.00 | 0.61 | 9.88 | 66.18 | -50.97 | 80.71 | 0.7777 | -411.0 | -360.0 | |
| 0.00 | 0.95 | 0.00 | 0.74 | 6.88 | 66.58 | -50.57 | 84.58 | 0.7726 | 390.0 | 339.5 | |
| 0.00 | 1.47 | 0.00 | 1.14 | 5.92 | 66.52 | -50.63 | 85.83 | 0.7733 | 818.0 | 739.4 | |
| 2.16 | 7.18 | 1.69 | 5.60 | 6.15 | 66.34 | -50.80 | 85.53 | 0.7752 | 647.8 | 615.9 | |
| 3.20 | 26.39 | 2.52 | 20.76 | 5.35 | 66.01 | -51.13 | 86.55 | 0.7789 | 740.1 | 428.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
