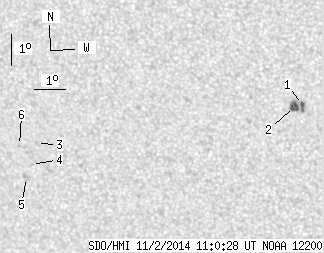

SDO HMI 2014-11-02 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.06 | 19.82 | 3.30 | 11.06 | -17.05 | 99.51 | -17.09 | 142.78 | 0.4596 | 18.9 | 5.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-02 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.21 | 12.46 | 0.66 | 6.78 | -16.18 | 103.22 | -13.38 | 147.36 | 0.4138 | 1088.9 | 756.2 | |
| 4.85 | -1.00 | 2.64 | -1.00 | -16.25 | 102.96 | -13.64 | 146.95 | 0.4170 | 917.9 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -17.62 | 94.38 | -22.22 | 135.53 | 0.5166 | -841.0 | -671.6 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -18.30 | 94.12 | -22.49 | 136.16 | 0.5263 | -673.0 | -597.9 | |
| 0.00 | 4.07 | 0.00 | 2.38 | -18.73 | 93.88 | -22.72 | 136.46 | 0.5330 | -819.0 | -592.1 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -17.70 | 93.79 | -22.81 | 134.91 | 0.5236 | -671.0 | -599.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
