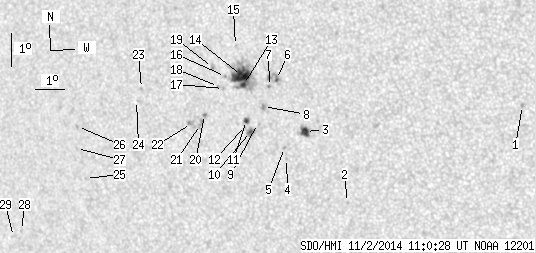

SDO HMI 2014-11-02 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.51 | 115.43 | 18.37 | 67.82 | -4.59 | 85.33 | -31.27 | 105.45 | 0.5385 | 364.8 | 286.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-02 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 0.89 | -4.45 | 94.88 | -21.72 | 111.57 | 0.3984 | -833.0 | -640.3 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -7.56 | 88.96 | -27.64 | 113.10 | 0.5021 | 664.0 | 498.9 | |
| 5.11 | 9.26 | 2.94 | 5.32 | -5.46 | 87.66 | -28.94 | 108.30 | 0.5094 | 872.1 | 584.1 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -6.30 | 86.96 | -29.64 | 109.42 | 0.5234 | 406.0 | 317.3 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -5.97 | 86.91 | -29.69 | 108.79 | 0.5225 | 680.0 | 566.0 | |
| 0.69 | 8.91 | 0.40 | 5.15 | -3.93 | 86.74 | -29.86 | 104.91 | 0.5161 | 848.5 | 698.1 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -4.14 | 86.49 | -30.11 | 105.19 | 0.5206 | -514.0 | -492.4 | |
| 0.00 | 2.68 | 0.00 | 1.56 | -4.76 | 86.25 | -30.35 | 106.20 | 0.5265 | -991.0 | -799.0 | |
| 0.00 | 0.61 | 0.00 | 0.35 | -5.28 | 86.01 | -30.59 | 107.02 | 0.5320 | -368.0 | -410.6 | |
| 1.56 | 5.11 | 0.91 | 2.99 | -5.53 | 85.76 | -30.84 | 107.33 | 0.5367 | 919.3 | 693.5 | |
| 1.56 | 3.03 | 0.91 | 1.78 | -5.20 | 85.64 | -30.97 | 106.68 | 0.5370 | -767.9 | -600.4 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -5.35 | 85.59 | -31.01 | 106.93 | 0.5383 | -159.0 | -174.9 | |
| 2.94 | 54.51 | 1.72 | 31.86 | -4.12 | 85.59 | -31.01 | 104.70 | 0.5334 | 663.8 | 373.3 | |
| 19.30 | -13.00 | 11.28 | -13.00 | -3.85 | 85.53 | -31.07 | 104.19 | 0.5333 | 1023.7 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -2.96 | 85.35 | -31.25 | 102.47 | 0.5327 | -675.0 | -489.9 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -3.90 | 84.97 | -31.63 | 104.02 | 0.5415 | 524.0 | 462.7 | |
| 0.00 | 1.38 | 0.00 | 0.82 | -4.27 | 84.88 | -31.72 | 104.63 | 0.5441 | 789.0 | 554.6 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -4.21 | 84.71 | -31.89 | 104.46 | 0.5463 | 526.0 | 543.3 | |
| 0.00 | 2.42 | 0.00 | 1.43 | -3.65 | 84.52 | -32.08 | 103.37 | 0.5470 | 781.0 | 614.5 | |
| 0.35 | 1.47 | 0.21 | 0.88 | -5.08 | 84.17 | -32.44 | 105.72 | 0.5572 | 807.5 | 675.1 | |
| 0.00 | 3.55 | 0.00 | 2.12 | -5.38 | 84.00 | -32.60 | 106.18 | 0.5606 | 824.0 | 700.5 | |
| 0.00 | 5.54 | 0.00 | 3.32 | -5.37 | 83.69 | -32.91 | 105.99 | 0.5650 | 597.0 | 521.5 | |
| 0.00 | 1.12 | 0.00 | 0.69 | -4.38 | 81.94 | -34.66 | 103.57 | 0.5855 | -574.0 | -472.6 | |
| 0.00 | 0.52 | 0.00 | 0.32 | -4.75 | 81.74 | -34.86 | 104.10 | 0.5895 | -657.0 | -578.3 | |
| 0.00 | 0.95 | 0.00 | 0.60 | -7.20 | 79.66 | -36.94 | 107.12 | 0.6262 | -640.0 | -453.6 | |
| 0.00 | 1.56 | 0.00 | 0.98 | -5.63 | 79.50 | -37.10 | 104.62 | 0.6227 | -643.0 | -527.7 | |
| 0.00 | 0.52 | 0.00 | 0.33 | -6.30 | 79.40 | -37.20 | 105.62 | 0.6262 | -657.0 | -558.2 | |
| 0.00 | 0.87 | 0.00 | 0.57 | -8.90 | 77.01 | -39.59 | 108.50 | 0.6662 | -537.0 | -503.6 | |
| 0.00 | 2.08 | 0.00 | 1.38 | -9.10 | 76.67 | -39.93 | 108.64 | 0.6712 | -641.0 | -430.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
