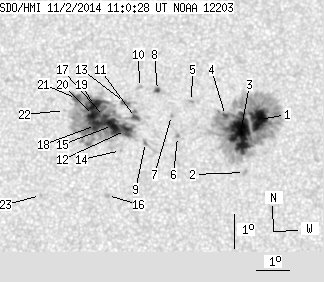

SDO HMI 2014-11-02 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 174.46 | 544.54 | 87.36 | 272.68 | 12.13 | 114.78 | -1.82 | 10.85 | 0.1458 | -82.3 | -27.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-02 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.00 | 303.98 | 13.51 | 152.01 | 12.27 | 117.03 | 0.43 | 357.02 | 0.1405 | -1346.9 | -361.8 | |
| 0.00 | 2.42 | 0.00 | 1.21 | 10.68 | 116.60 | -0.00 | 0.01 | 0.1127 | -925.0 | -768.0 | |
| 57.63 | -1.00 | 28.80 | -1.00 | 11.88 | 116.48 | -0.12 | 0.89 | 0.1336 | -1275.1 | 999999 | |
| 2.16 | -1.00 | 1.08 | -1.00 | 12.39 | 116.02 | -0.58 | 3.97 | 0.1428 | -612.5 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 12.81 | 114.99 | -1.62 | 10.45 | 0.1523 | -861.0 | -598.6 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 11.76 | 114.57 | -2.04 | 14.88 | 0.1361 | 984.0 | 762.6 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 12.39 | 114.38 | -2.22 | 14.95 | 0.1474 | 669.0 | 576.9 | |
| 1.56 | 2.86 | 0.78 | 1.43 | 13.14 | 113.94 | -2.66 | 16.25 | 0.1620 | -917.1 | -712.1 | |
| 0.00 | 2.77 | 0.00 | 1.38 | 11.58 | 113.59 | -3.01 | 21.90 | 0.1384 | 889.0 | 654.0 | |
| 0.00 | 2.68 | 0.00 | 1.35 | 13.23 | 113.39 | -3.21 | 19.21 | 0.1663 | -677.0 | -517.3 | |
| 2.60 | 213.90 | 1.30 | 107.32 | 12.33 | 113.28 | -3.32 | 21.89 | 0.1524 | 970.9 | 533.1 | |
| 10.73 | -11.00 | 5.37 | -11.00 | 11.94 | 112.98 | -3.62 | 24.74 | 0.1483 | 1097.3 | 999999 | |
| 2.08 | 5.80 | 1.04 | 2.91 | 12.78 | 112.94 | -3.66 | 22.74 | 0.1618 | 963.7 | 723.9 | |
| 0.00 | 0.87 | 0.00 | 0.43 | 11.34 | 112.84 | -3.76 | 27.50 | 0.1401 | -509.0 | -333.7 | |
| 18.26 | -11.00 | 9.15 | -11.00 | 12.09 | 112.58 | -4.02 | 26.63 | 0.1536 | 1322.5 | 999999 | |
| 0.00 | 2.42 | 0.00 | 1.21 | 9.99 | 112.46 | -4.14 | 35.34 | 0.1235 | -901.0 | -711.8 | |
| 3.98 | -11.00 | 2.00 | -11.00 | 12.35 | 112.34 | -4.26 | 27.21 | 0.1596 | 1214.7 | 999999 | |
| 13.07 | -11.00 | 6.55 | -11.00 | 12.08 | 112.07 | -4.54 | 29.50 | 0.1577 | 1274.7 | 999999 | |
| 18.69 | -11.00 | 9.39 | -11.00 | 12.68 | 112.02 | -4.58 | 27.89 | 0.1671 | 979.1 | 999999 | |
| 12.03 | -11.00 | 6.04 | -11.00 | 12.38 | 112.00 | -4.60 | 28.92 | 0.1628 | 1286.0 | 999999 | |
| 4.67 | -11.00 | 2.35 | -11.00 | 12.89 | 111.47 | -5.13 | 30.05 | 0.1749 | 737.2 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 12.53 | 111.11 | -5.49 | 32.89 | 0.1728 | 650.0 | 518.4 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 9.98 | 110.43 | -6.17 | 46.54 | 0.1466 | -765.0 | -542.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
