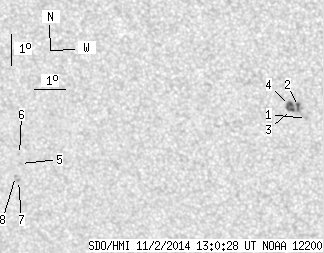

SDO HMI 2014-11-02 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.79 | 17.29 | 3.14 | 9.53 | -16.84 | 100.74 | -14.77 | 146.35 | 0.4357 | 37.1 | 182.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-02 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.61 | -16.61 | 103.53 | -11.98 | 150.69 | 0.4080 | 236.0 | 219.8 | |
| 1.64 | 11.85 | 0.89 | 6.42 | -16.23 | 103.30 | -12.21 | 149.75 | 0.4046 | 1018.1 | 774.0 | |
| 1.47 | -2.00 | 0.80 | -2.00 | -16.33 | 103.07 | -12.43 | 149.41 | 0.4078 | 924.0 | 999999 | |
| 2.68 | -2.00 | 1.45 | -2.00 | -16.20 | 103.02 | -12.49 | 149.14 | 0.4066 | 933.7 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.95 | -18.25 | 94.05 | -21.46 | 137.38 | 0.5152 | -686.0 | -555.7 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -17.96 | 94.05 | -21.45 | 136.98 | 0.5121 | -658.0 | -586.0 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -18.80 | 93.90 | -21.60 | 137.95 | 0.5224 | -771.0 | -634.3 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -18.67 | 93.82 | -21.68 | 137.67 | 0.5219 | -818.0 | -661.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
